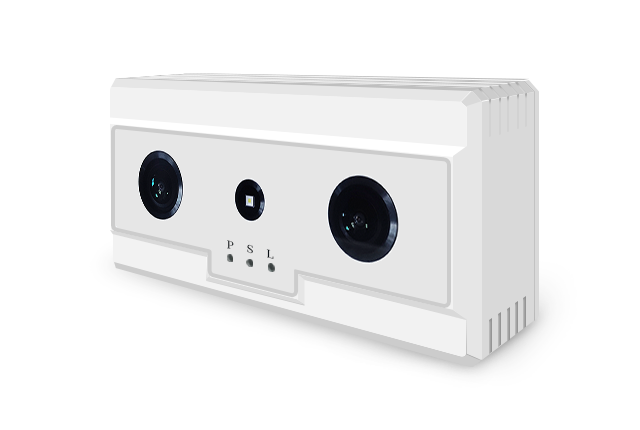

Bus People Counter
HX-CCD23

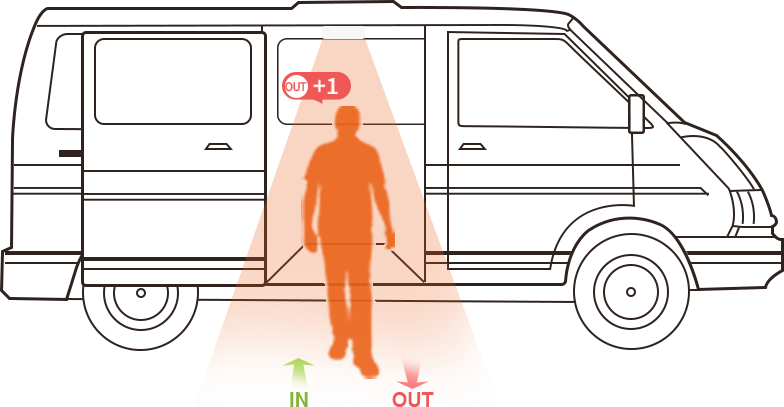

Use head and shoulders to detect and track people. When the center of
the head and shoulders crosses the pre-defined line segment,
the passenger flow count is increased.
• 98% Accuracy
• Adults/Children Differentiation
• Night Vision Mode
• OD/Attributes (two versions)
• Privacy Compliance
• Network Intelligence
• Automatic Zoom
• Wide Coverage
Bus People Counter Related Introduction
Multiple Versions Supported
AI can identify passenger characteristics and gender in real time, meeting the passenger flow collection
needs of different scenarios.

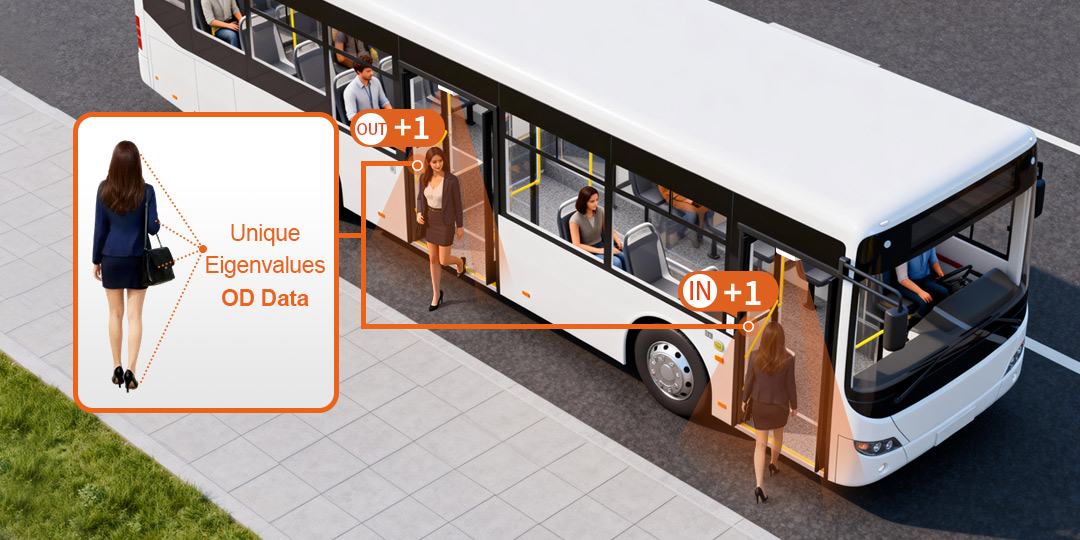

OD Version
The device uses built-in AI to track passengers in real time, capture unique non-facial features, and generate OD data by matching these features during the trip.

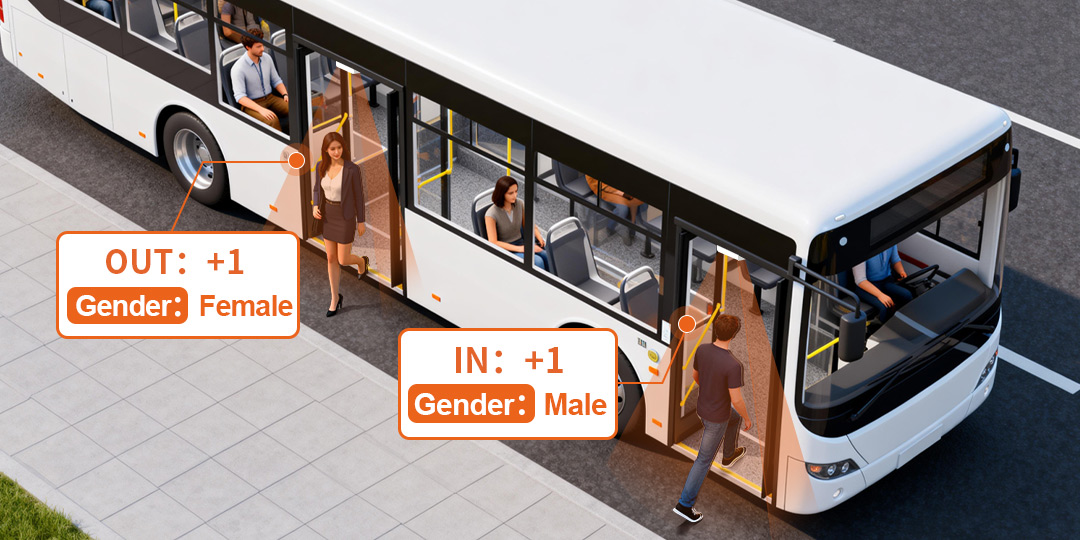

Attribute Version
It captures real-time 3D depth data through a binocular AI sensor and uses head-shoulder and body-tracking algorithms for accurate statistics, while built-in AI supports gender detection.

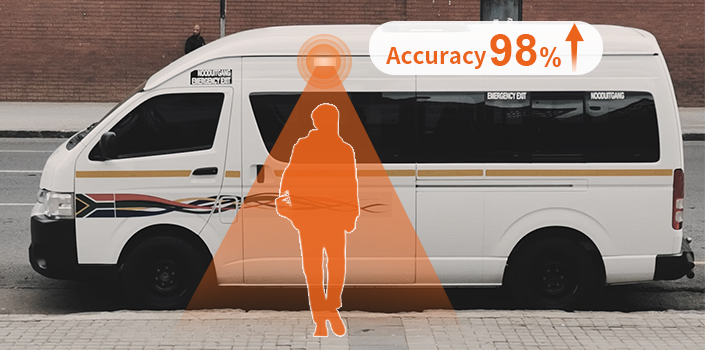

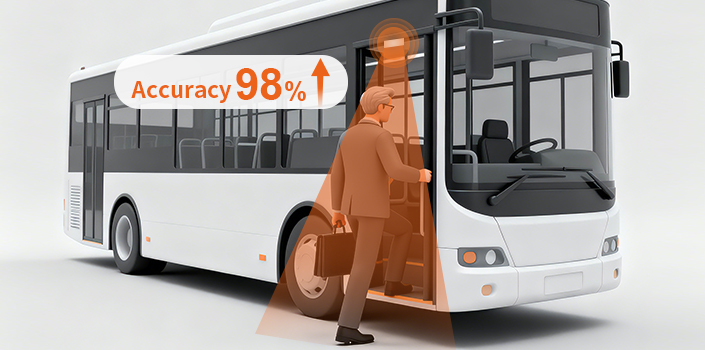

Accurate Counting
Bus people counter sensor real-time and accurate human identification, with an accuracy rate of over 98%, accurately filtering out children and other large objects. With built-in fill light.the fill light is automatically turned on at night with low brightness,and the accuracy is not affected.
Night Vision Mode
At night when light is low, the lights can be turned on automatically to ensure high performance operation and accuracy is not affected.

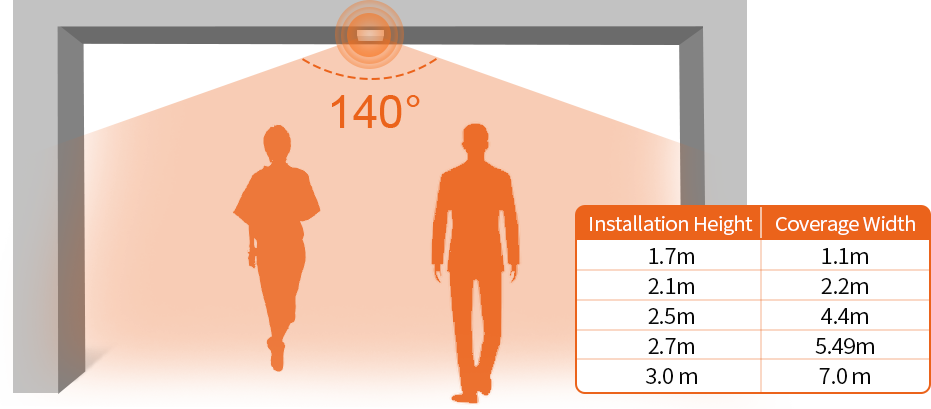

Wide Coverage
The bus people counter sensor device features a 140° ultra-wide field of view (angle of view) and supports automatic zoom via software. The device supports an installation height range of 1.7-3m and can adapt to different installation environments.
Multi-Protocol Support
The device supports data transmission via HTTP POST/HTTPS POST/Modbus-RTU/Modbus-TCP/MQTT protocols, and allows for secondary development and data integration with the device.

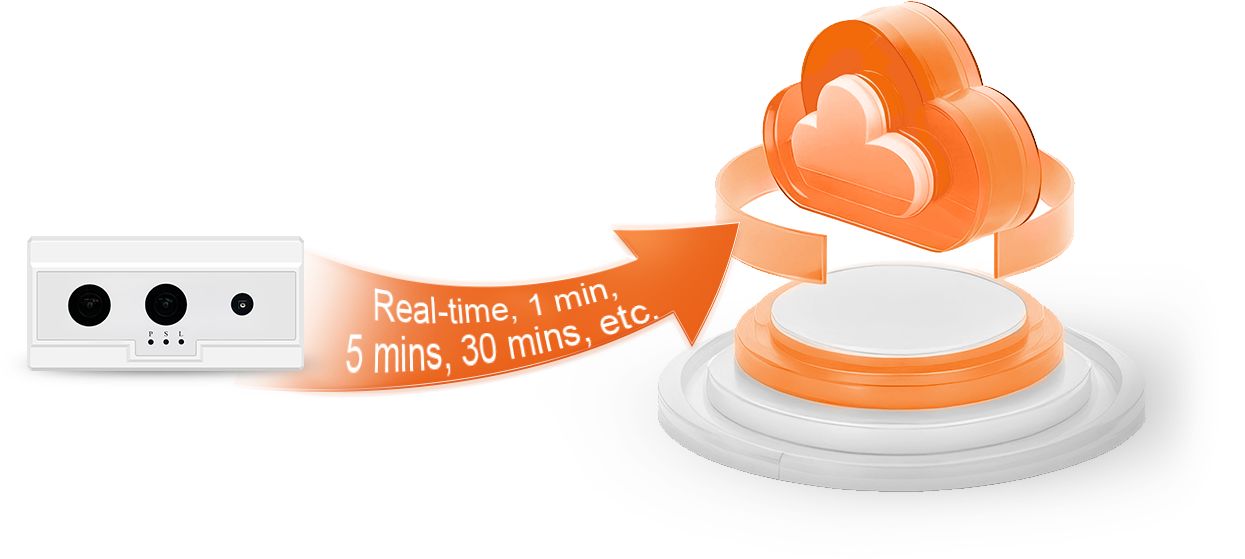

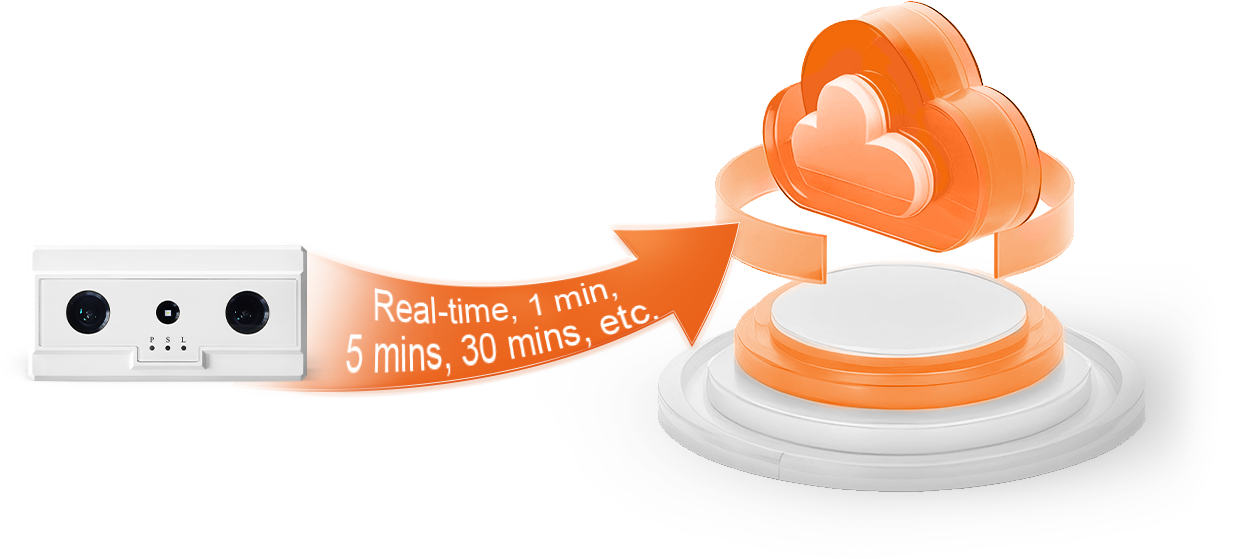

Data Upload Timelines
You can customize the data upload time to the people counting platform, which can support real-time, 1 minute, 5minutes, 30 minutes, etc.

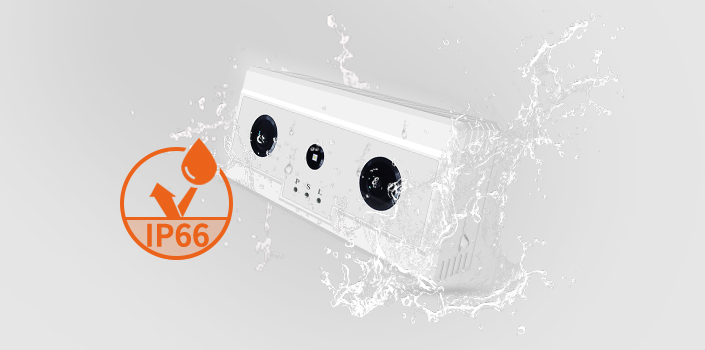

IP66 High Protection Level
The bus people counter sensor is designed with a splash-proof casing to reduce the device failure rate and enhance hardware reliability.

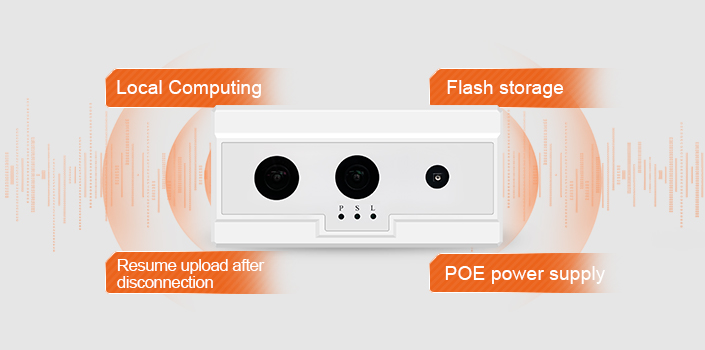

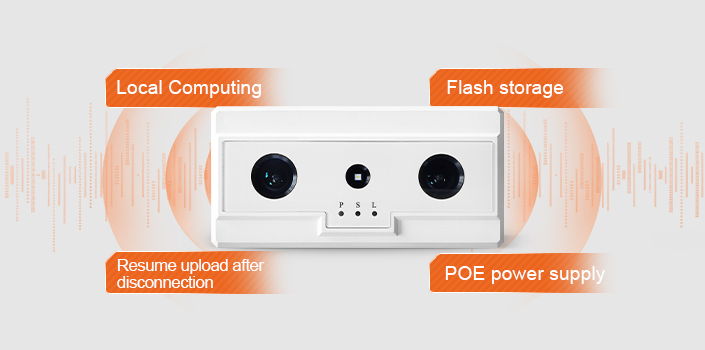

Network Smart Devices

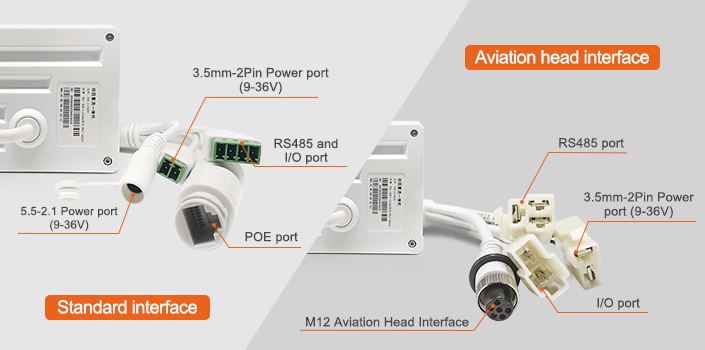

Supports local computing without the need for a local server,supports flash offline storage,supports resumable downloads when disconnected, supports PoE power supply, and supports wired/wireless connections.

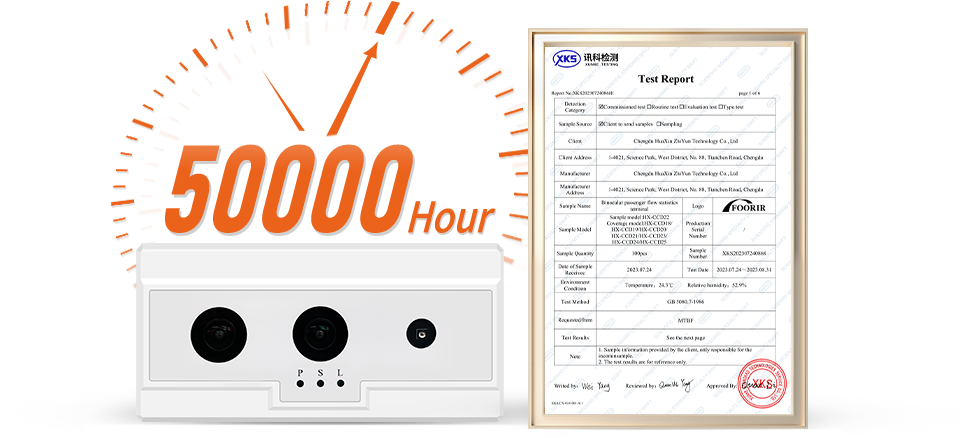

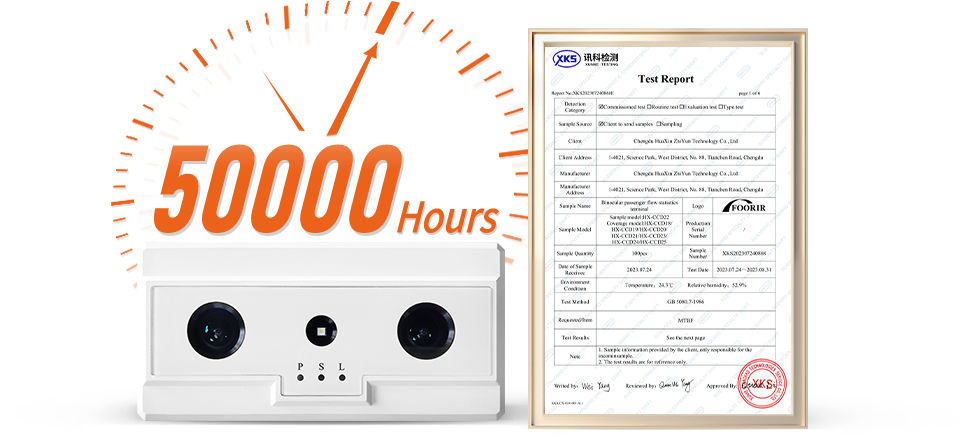

Reliability Test
Automatic bus people counter device has obtained relevant certificates, and its mean time
between failures (MTBF) is up to 50,000 hours, ensuring stable operation.
Multiple Function Modes
Capacity Limitation Mode
When the number of people exceeds the set value, the device sends a signal to the alarm and the alarm sounds.
Child Mode
After setting the height of children,people who are lower than the height will be recognized as children.
Control Mode
Equipment works with relaycontrol a variety of electrical appliances.
Data Display Mode
The device and the occupancy counter host arematched to visualize the data.
Channel Mode
Which can detect the number of people passing by the door and the number of people entering thestore.
Standalone Mode
The local data of the device can be saved for 90 days and can be exported and used without network.
Bus People Counting System
The bus people counter system cloud platform conducts visual management, providing users with real-time fast query
and multi-dimensional analysis reports to help make accurate operational decisions.

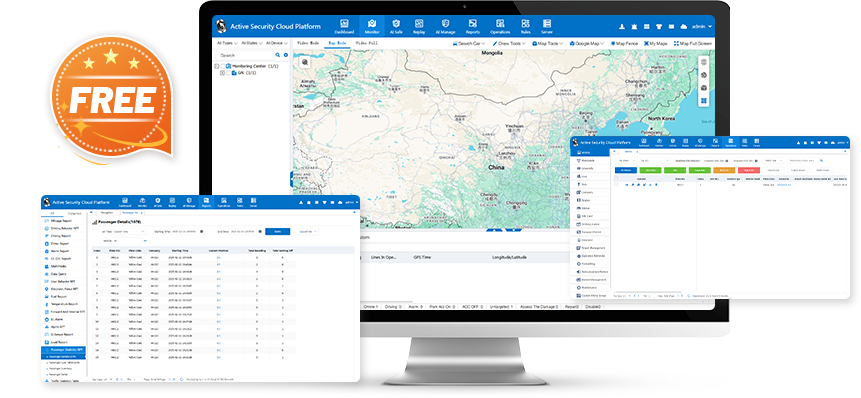

Management Platform
The bus people counter system platform relieson the vehicle counter host and passenger counter data upload to provid eusers with vehicle location and passenger flow at sites;multi-dimensional statistical analysis reports;basic information management.
Information Display
Use GPS to track the vehicle andrecord and query its historical routes. Provide an intuitive visual interface to display the vehicle’s connection status.displays the location of the vehicle, station information, and the number of passengers getting on and off the bus at each station on the day.
Statistical Report
Statistics reports can provide users with institution passenger flow statistics, route passenger flow statistics,station passenger flow statistics, vehicle passenger flow statistics, and station passenger flow distribution. it presents the overall passenger flow change trend of the institution in detail.
Web Configuration
Connecting to the device via a hotspot allows for easy modification of height parameters, setting of detection areas and lines, and device upgrades, providing convenient and quick management and performance optimization.
• Open your computer’s (or mobile phone’s) Wi-Fi list and search for the device’s hotspot: HF + last 10 digits of SN
• Hotspot password: hf123456
• Open any browser and enter the access address: 192.168.4.10
• Username: admin
• Password: hf123456

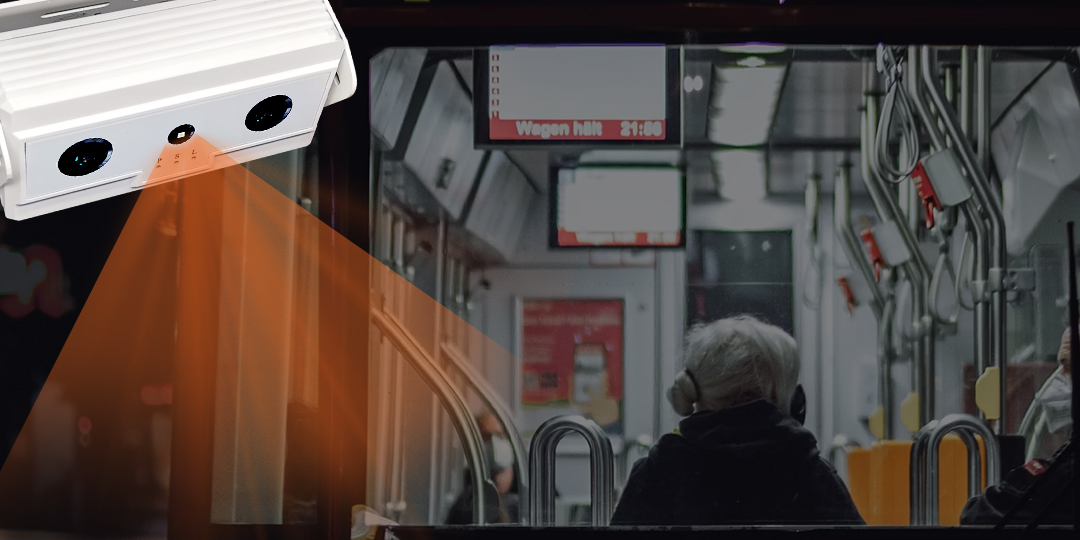

Application Scenarios
Bus people counter sensor to ultra-low scene, such as minibus, microbus, activity bus
and tourist sightseeing car and other means of transportation.

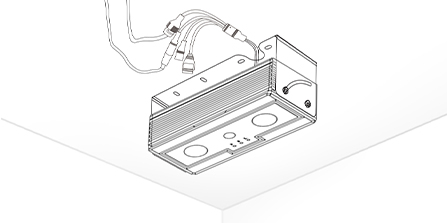

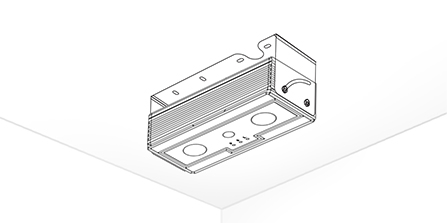

Easy Installation
Fix the expansion screw slots in the holes on the ceiling, and install the bracket firmly with expansion screws.
Insert the device into the bracket and align the holes on the side of the bracket with the screw holes on the device to secure it.
Supply power to the device and the grid.
Related Products

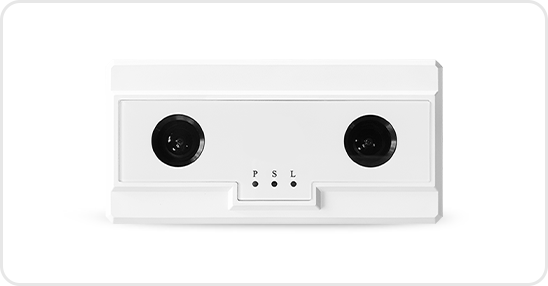

HX-CCD20

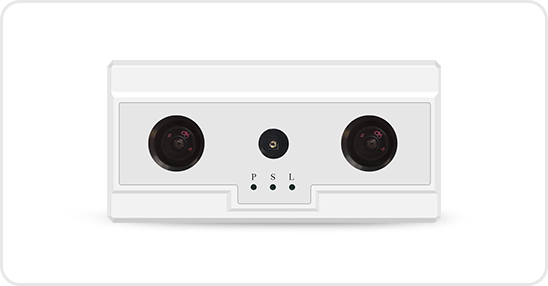

HX-CCD22
