Vehicle Counter Host
Vehicle positioning monitoring, passenger flow statistics
Multi-network support
4G/3G/2G standard switchingAPN/VPDN Dedicated network adapter Supports simultaneous online access of wired and 4G networks
Satellite positioning
The vehicle counter host is a GNSS module that supports multi-satellite concurrent and integrated positioning of inertial navigation, and supports GPS, GLONASS, BeiDou, Galileo and QZSS multi-satellite systems

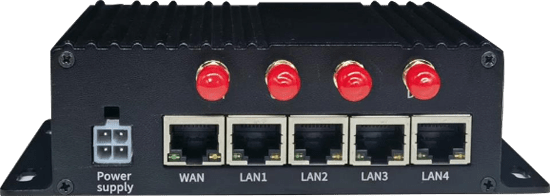

Interface introduction
Interface diversity
Product Details
Dimension and Weight
Length
143 mm
Breadth
70 mm
Thickness
40 mm
Weight
Gross weight: 0.06KG
Net weight: 0.037KG
Actual size and weight may vary depending on configuration, manufacturing process, and measurement method
Installation Method and Network Port
Installation method
Fixed in vehicle or bracket installation
Network port
Support 10/100M Ethernet
Flash Memory and Wireless WIFI
Flash memory
SPIFlash：32M
Wireless WIFI
2T2R2.4GHzwith300Mbps
4G Module and GPS Module
4G module
Model EC25-E, 4G LTE, interface PCPCIE/LCC (different countries, different models)
GPS module
GLONASS, BeiDou, Galileo and QZSS
Power Supply and Power Consumption
Power supply
Voltage 9~30V Recommended voltage (12V)
Power consumption
Working power consumption 2.2W~2.5W
Case Study
Public transport case
Use requirement
Use product
Vehicle Counter Host
