TOF People Counter
FP221 (Time-of-Flight)
Using advanced 3D ToF technology, the speed of light is used to convert time
measurements into distances, deriving the shape and position of people.
when people cross predefined line segments, the people count increases.
• 98% Accuracy
• Adults/Children Differentiation
• Regional People Counting
• Dwell Time Detection
• Strong environmental adaptability
• Employee identification
• Wandering filtering
• 100% Anonymous Detection
• Data Upload Timeliness
• Network Smart
• Rich Open Interfaces
• Heat map analysis
• Efficient convenient configuration
• Off-Network Storage
TOF People Counter Related Introduction
TOF (Time-of-Flight) Technology
TOF people counter relies on powerful ToF technology and people counting algorithms to better filter non-object targets, it has a fast response time, is resistant to ambient light, can be used in dark environments, has a large detection range.
Accurate Counting
The TOF people counting principle to obtain the environmental depth map. it can accurately identify the human body in real time with an accuracy rate of more than 98%, and effectively filter non-target objects such as children and large objects to ensure the accuracy of the data.

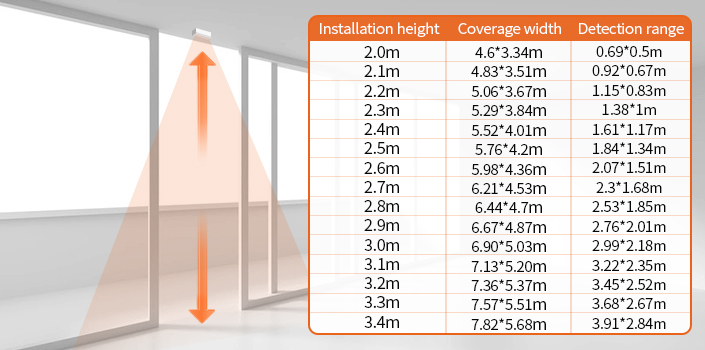

Wide Coverage
The ceiling installation method can flexibly set the installation height between 2.0m to 3.4 m, and the maximum detection range can reach 3.91*2.84 meters , efficiently meeting the needs of various scenarios.

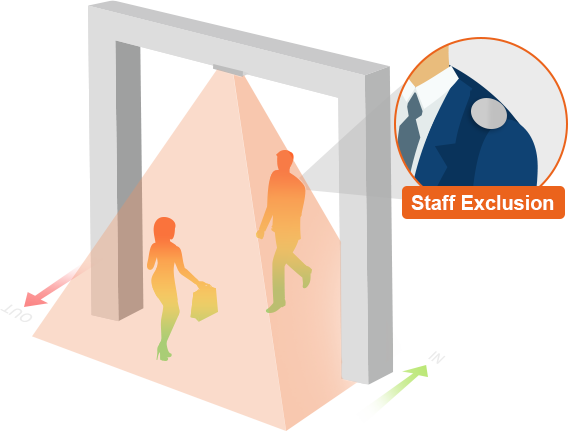

Employee Identification
By identifying reflective tags, data interference when employees enter and exit can be eliminated,
providing users with more accurate and valuable customer flow data analysis.

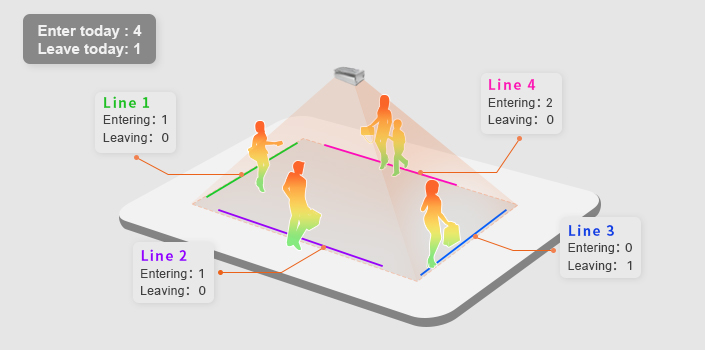

Line Crossing People Counting
Supports custom drawing of detection lines (up to 4 lines) to achieve two-way counting of people crossing the line at multiple entrances and exits.at the sametime, the device supports wandering filter detection function to conduct more accurate people counting analysis.
Regional People Counting
Supports custom drawing of multiple detection areas (up to 4),accurately counting the number of people in the specified area, and counting the time people stay in the specified area.
Data Storage
lt has large-capacity data storage capacity and can store up to 10 years of data locally. it also has the function of resuming data transmission after network disconnection, which supports 180 days of resuming data transmission after network disconnection, effectively preventing data loss and fully ensuring data integrity.

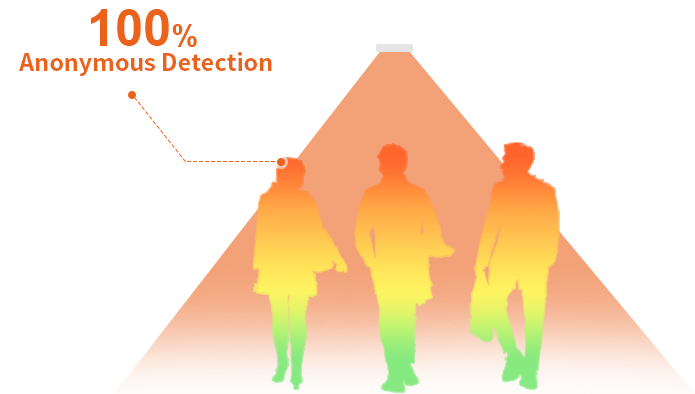

Anonymous Detection
Only depth map information is collected and the depth map and grayscale map of the object are obtained directly,
rather than the RGB image, which can effectively and thoroughly protect the privacy of personnel.
Rich Open Interfaces

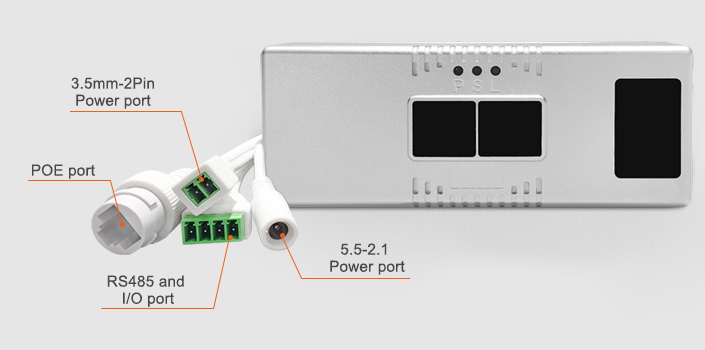

The device integrates RS485, IO interface and POE power supply, which is fully adaptable to different installation environments and data transmission requirements to ensure efficient and flexible configuration and application.
Multi-Protocol Support
TOF person counting camera provides SDK development packages for HTTP protocol
and MQTT protocol, easily realizes the docking of device data with various servers, supporting secondary development,users can log in to the WEB interface through a browser to enter the management platform to view or export data.
Reliability Test
TOF people counting camera device has obtained relevant certificates, and its mean time
between failures (MTBF) is up to 50,000 hours, ensuring stable operation.
Data Upload
You can customize the data upload time to the people counting platform, which can support real-time, 5minutes, 30 minutes, etc.

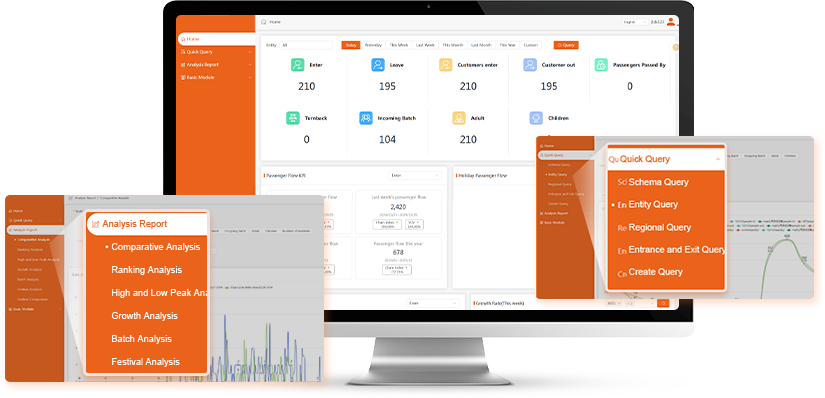

People Counting System
The People counting System cloud platform conducts visual management, providing users with real-time fast query
and multi-dimensional analysis reports to help make accurate operational decisions.
Analysis Report
The analysis report covers comparative analysis, ranking analysis, peak and valley analysis, growth analysis, batch analysis, holiday analysis, holiday comparison, etc.
Data Display
The query indicators includethe number of people entering.leaving, passed by, turning back, adult and children,incoming batch, outgoing batch,the number of families and individuals, etc
Quick Query
It includes pattern query, entity query, area query, entrance and exit query. Users can also create custom queries for 5 minutes, half an hour, hour, day, week, month, and year.
Standalone Mode
In stand-alone mode, you can debug the device through the Web interface, query the number of people and
residence time of the detection line and detection area, and support data export.
Debug Terminal
TOF people counter stand-alone mode is to connect the device and the debugging computer to the same network, and query detailed statistical data through the Web interface debugging terminal including number of inspection lines,number of people in detectionarea,residence time.heat map.
Data Query
• The query data supports theoption to include or exclude employees.
• Supports switching between line charts and bar charts.
• Supports downloading generated data images and exporting data tables.
• The query dimensions can be selected as 5 minutes, half anhour, hour, day, month, andyear, and can be displayed according to user needs.
Heatmap Analysis
The device supports the generation of movement heat maps and stay heat maps.users can use color blocks to quickly analyze the density of crowd movement and the distribution of stay time, thereby gaining anin-depth understanding of market demand and consumer behavior habits, providing strong support for decision-making.
Application Scenarios
TOF people counter sensor it is widely applicableto shopping malls,retail stores, buses,scenic spots, libraries, museums.restaurants,factories,
supermarkets, parks, buildings, smart toilets, exhibitionhalls, gyms, etc.
Easy Installation
Fix the expansion screw slots in the holes on the ceiling, and install the bracket firmly with expansion screws.
Insert the device into the bracket and align the holes on the side of the bracket with the screw holes on the device to secure it.
Supply power to the device and the grid.
