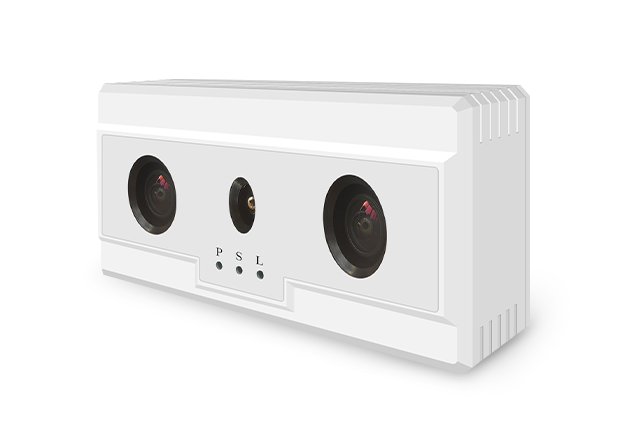

Passenger Counter

HX-CCD22 Night Vision Bus Version

Use head and shoulders to detect and track people. When the center of

the head and shoulders crosses the pre-defined line segment,

the passenger flow count is increased.

98% Accuracy
Adults/Children Differentiation
Night Vision Mode
Bi-Directional People Counting

Anonymous Detection
Network Smart
Rich Open Interfaces
Wide Coverage

Passenger Counter Related Introduction

Bus Mode

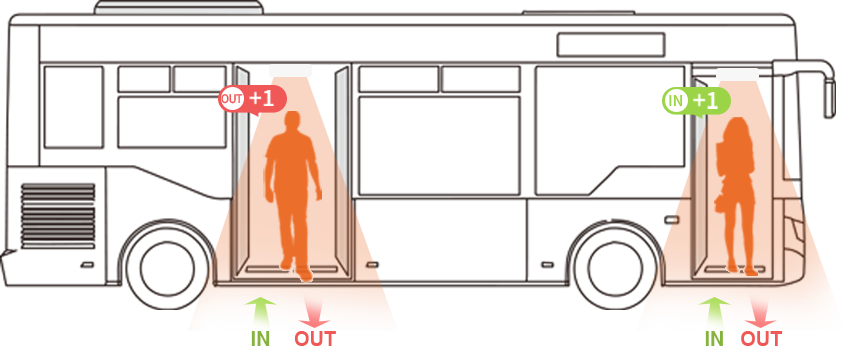

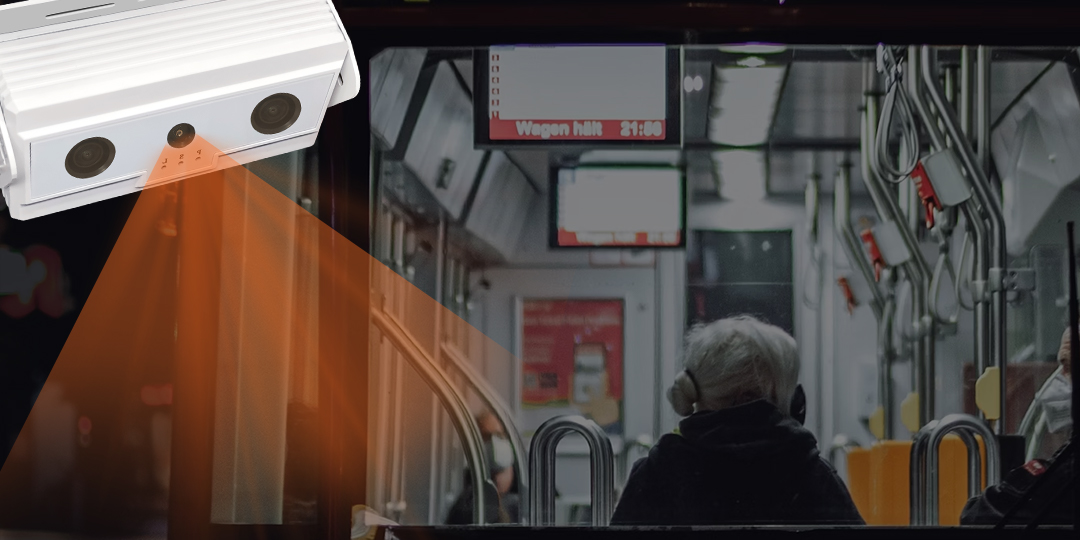

Passenger counter sensor can be installed on the front and rear doors of the bus to count the passenger flow at each bus stop and the number

of passengers in the bus.userscan obtain accurate passenger counting through the cloud platform,

it can start counting when the door is opened and stop counting when the door is closed.

Accurate Counting

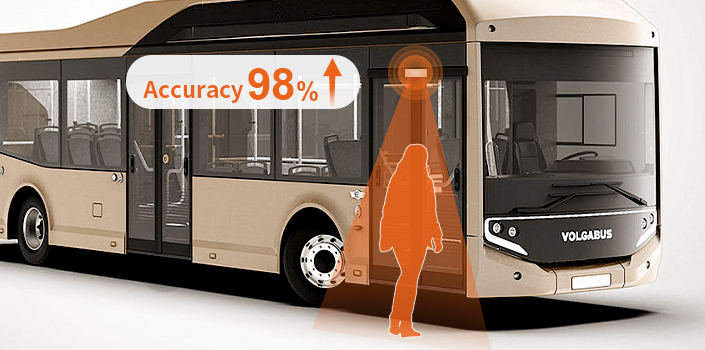

Passenger counter sensor accurate human identification, with an accuracy rate of over 98%, accurately filtering out children and other large objects. With built-in fill light.

Night Vision Mode

At night when light is low, the lights can be turned on automatically to ensure high performance operation and accuracy is not affected.

Wide Coverage

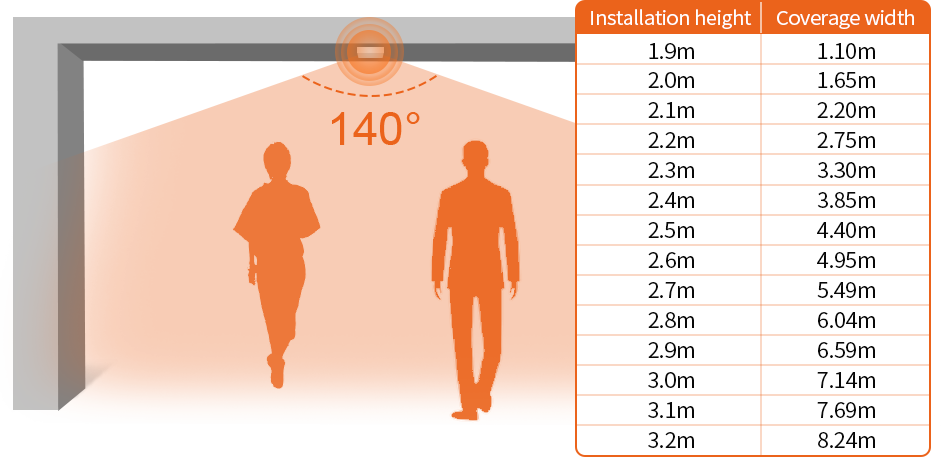

The passenger counter sensor hasa large 140° field of view (viewing Angle) 140° *120° minimum installation height 1.9m maximum installation height 3.2m which can cover a wider area.lt is especially suitable for places with limited ceiling installation space and spacious door areas.

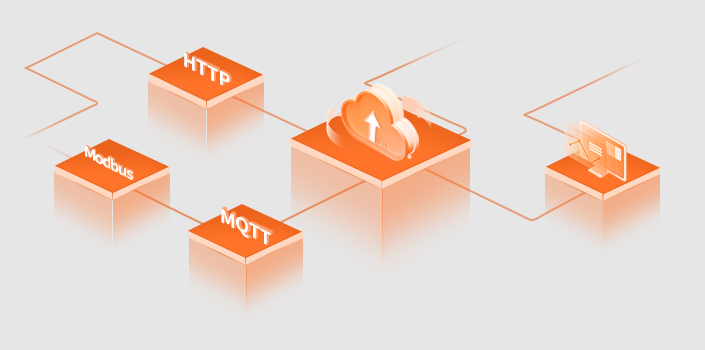

Multi-Protocol Support

Passenger counter sensor transmitsdata to the server via HTTP POST/HTTP SPOST/ Modbus-RTU /Modbus-TCP/ MQTT protocol, supporting secondary development and data docking. users can login to the WEB interface through a browser to enter the management platform toview or export data.

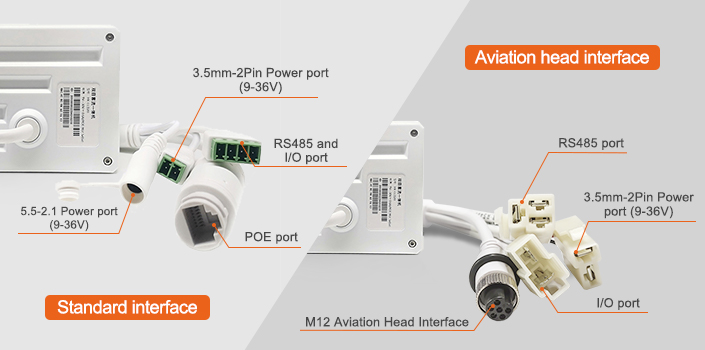

Rich Open Interfaces

The device has rich local application interfaces and RS-485 expansion support, so developers can integrate and develop flexibly and quickly.M12 aviation head interface available.

Data Upload Timelines

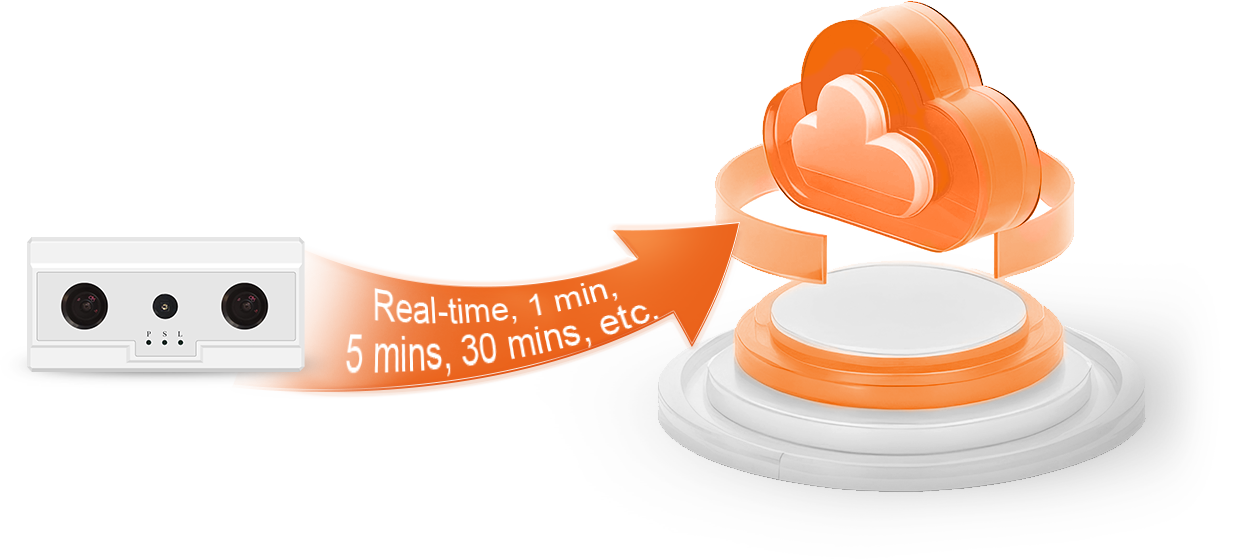

You can customize the data upload time to the people counting platform, which can support real-time, 1 minute, 5minutes, 30 minutes, etc.

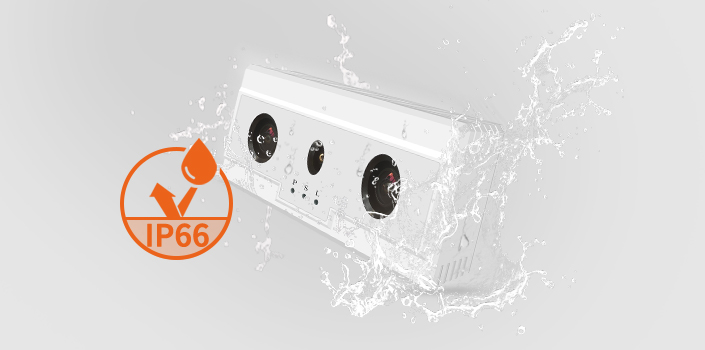

IP66 High Protection Level

The bus passenger counting sensor is designed with a splash-proof casing to reduce the device failure rate and enhance hardware reliability.

Network Smart Devices

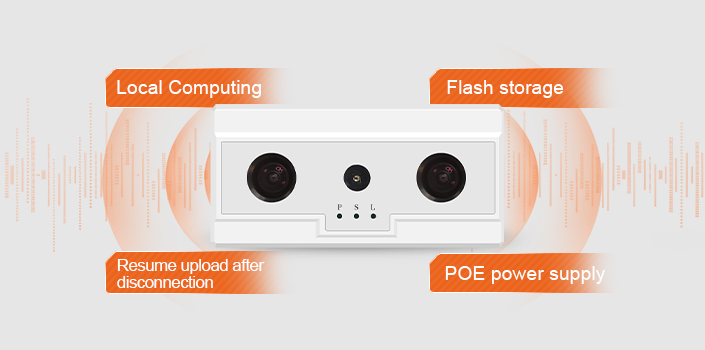

Supports local computing without the need for a local server,supports flash offline storage,supports resumable downloads when disconnected, supports PoE power supply, and supports wired/wireless connections.

Reliability Test

Automatic passenger counters device has obtained relevant certificates, and its mean time

between failures (MTBF) is up to 50,000 hours, ensuring stable operation.

More Function Modes

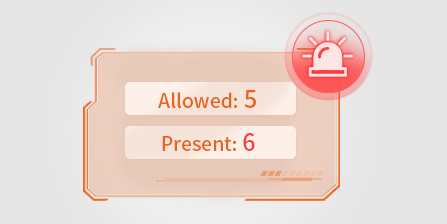

Capacity Limitation Mode

When the number of people exceeds the set value, the device sends a signal to the alarm and the alarm sounds.

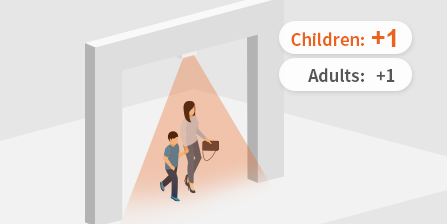

Child Mode

After setting the height of children,people who are lower than the height will be recognized as children.

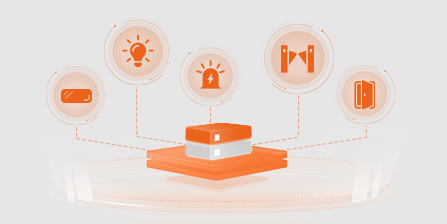

Control Mode

Equipment works with relaycontrol a variety of electrical appliances.

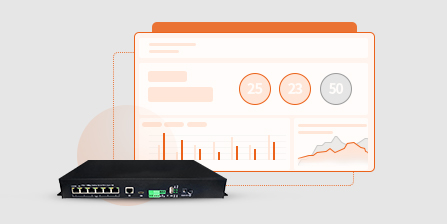

Data Display Mode

The device and the occupancy counter host are matched to visualize the data.

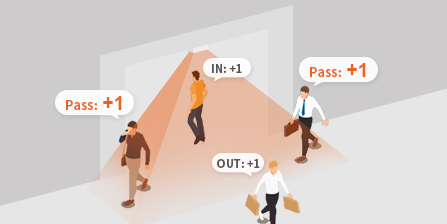

Channel Mode

Which can detect the number of people passing by the door and the number of people entering the store.

Standalone Mode

The local data of the device can be saved for 90 days and can be exported and used without network.

Bus Passenger Counting System

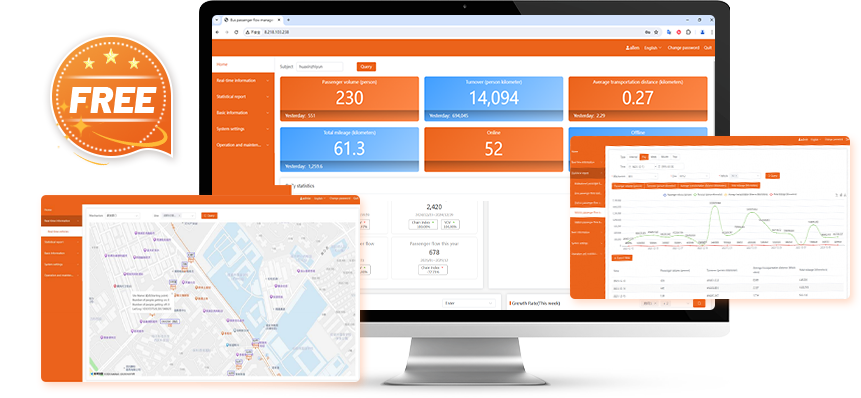

The bus passenger counting system cloud platform conducts visual management, providing users with real-time fast query

and multi-dimensional analysis reports to help make accurate operational decisions.

Management Platform

The bus passenger counting system platform relieson the vehicle counter host and passenger counter data upload to provid eusers with vehicle location and  passenger flow at sites;multi-dimensional statistical analysis reports;basic information management.

Information Display

Use GPS to track the vehicle and record and query its historical routes. provide an intuitive visual interface to display the vehicle’s connection status.displays the location of the vehicle, station information, and the number of passengers getting on and off the bus at each station on the day.

Statistical Report

Statistics reports can provide users with institution passenger flow statistics, route passenger flow statistics,station passenger flow statistics, vehicle passenger flow statistics, and station passenger flow distribution. it presents the overall passenger flow change trend of the institution in detail.

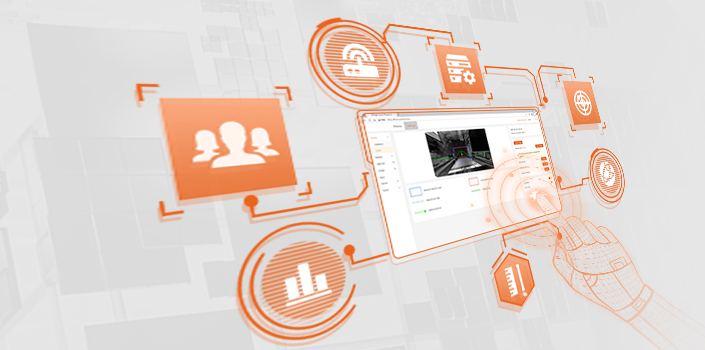

Client Configuration

On the same network segment, enter the debugging interface through the website we provide. you can link the corresponding device to view passenger flow data in real time, view device information, modify device settings, installation height, filter height, rotation angle, detection direction, network parameters, etc., and display the number of people entering/leaving/passing/staying/returning in real time. you can also export passenger flow data for a set time.

Application Scenarios

Passenger counter sensor it is widely used in long-distance passenger transport, urban public transportation systems,

travel agency passenger vehicles, daily public transportation operation vehicles, corporate shuttle buses,

passenger ships, shopping center shuttle buses, etc.

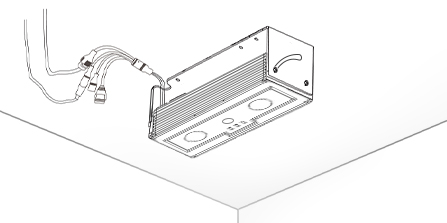

Easy Installation

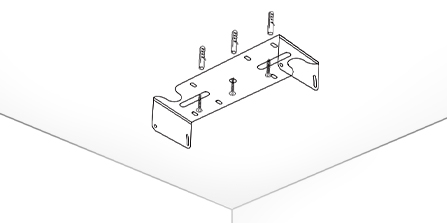

Fix the expansion screw slots in the holes on the ceiling, and install the bracket firmly with expansion screws.

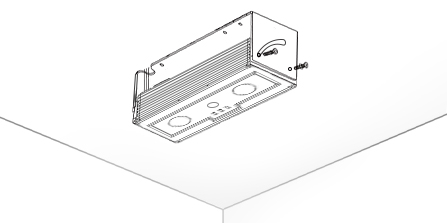

Insert the device into the bracket and align the holes on the side of the bracket with the screw holes on the device to secure it.

Supply power to the device and the grid.

Related Products

HX-CCD20 3D Stereo Vision

HX-CCD23 Ultra-Low Scene Version

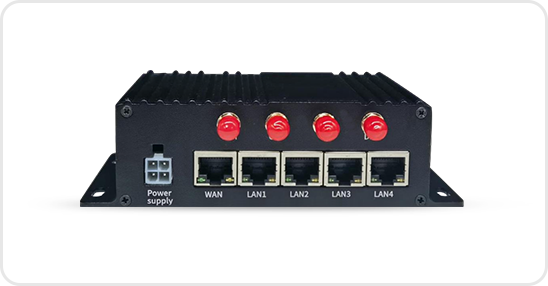

Vehicle Counter Host
