3D People Counter
HX-CCD20 3D Stereo Vision

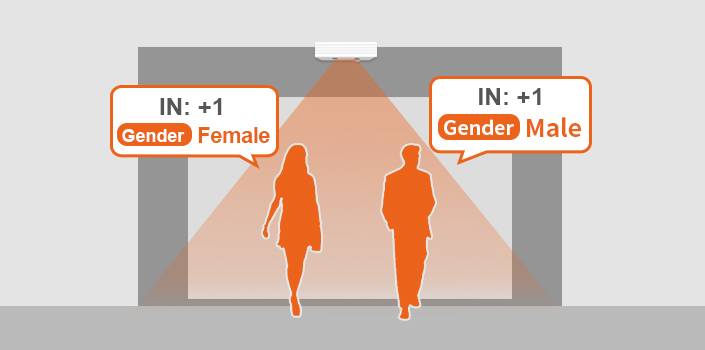

Use head and shoulders to detect and track people. When the center of
the head and shoulders crosses the pre-defined line segment,
the person counting is increased.
• 98% Accuracy
• Adults/Children Differentiation
• Wide Coverage
• IP66 High Protection Level
• Anonymous Detection
• Data Upload Timeliness
• Network Smart
• Rich Open Interfaces

3D People Counter Related Introduction

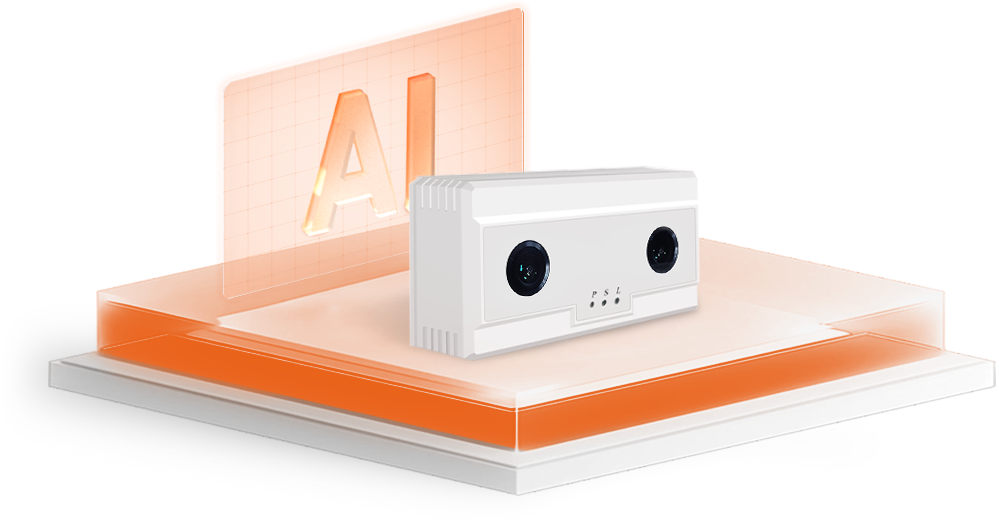

Vision AI Sensor
3D people counter vision AI sensor obtains 3D depth information in real time, identifies head and shoulder features in complex scenes based on head and shoulder feature algorithm, and realizes accurate passenger flow statistics through human body tracking algorithm.
* Simultaneously counts: in, out, stay, return, and accurately filters children and other large objects.
Accurate Counting
The 3D people counting camera accurately identifies human bodies in real time, using the most advanced AI deep learning algorithm with an accuracy rate of over 98%!

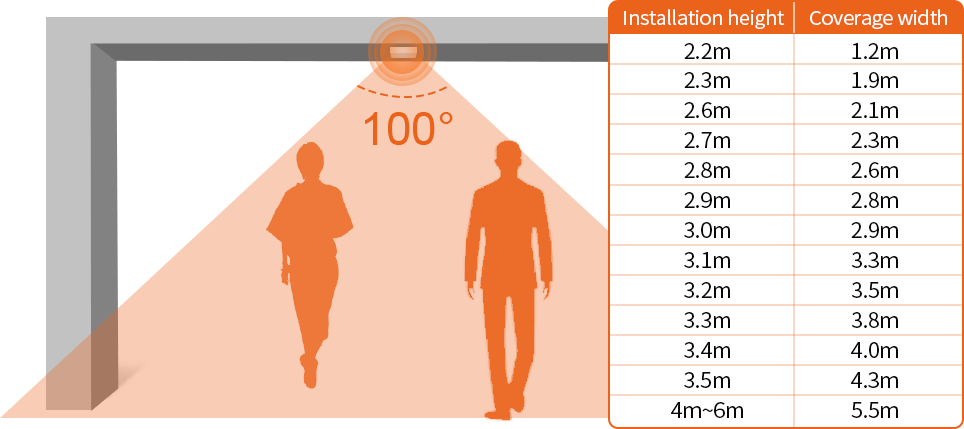

Wide Coverage
The footfall counting camera has alarge field of view of 100°andwider coverage. field of view (viewing Angle) 100° *70° minimum installation height 2.2m maximum installation height 6m which canreduce the number of required counters.

Multi-Protocol Support
3D person counting camera transmits data to the server via HTTP POST/HTTP SPOST /Modbus-RTU/Modbus-TCP/MQTT protocol, supporting secondary development and data docking. users can log in to the WEB interface through a browser to enter the management platform to view or export data.

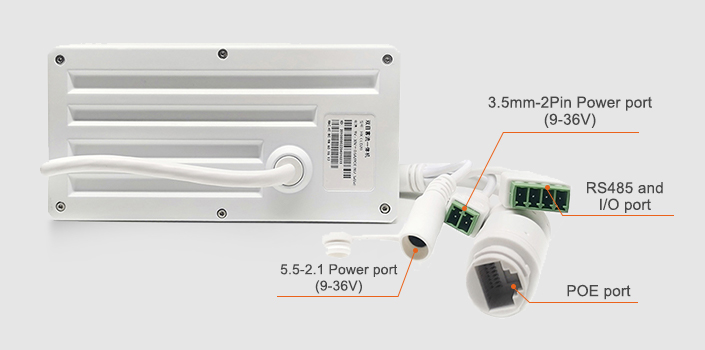

Rich Open Interfaces
The footfall cameras device has rich local application interfaces and RS-485 expansion support, so developers can integrate and develop flexibly and quickly.

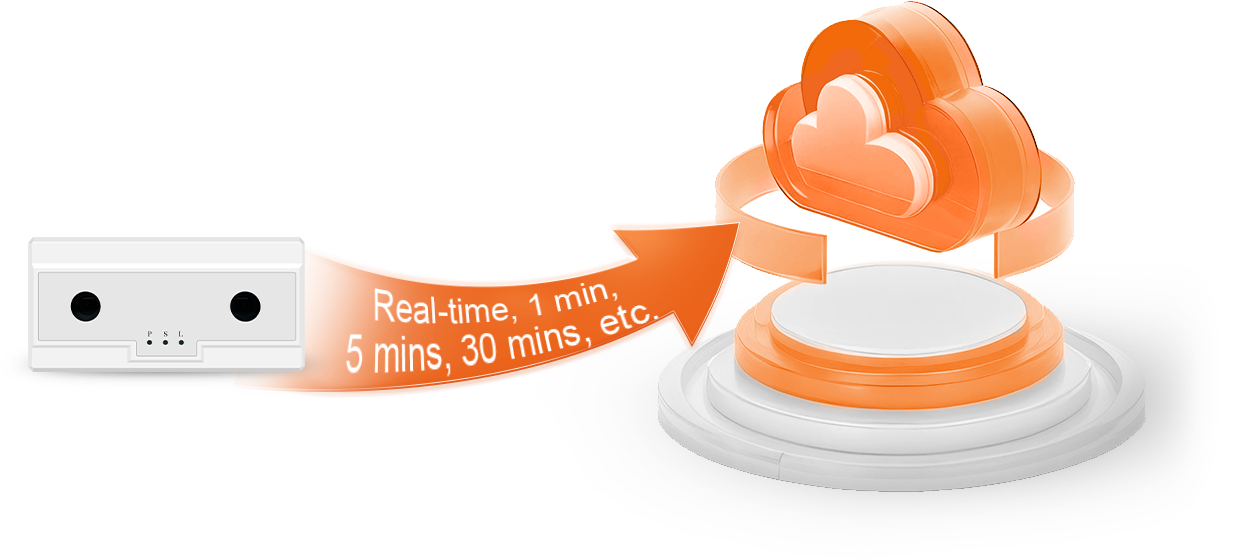

Data Upload Timelines
You can customize the data upload time to the people counting platform, which can support real-time, 1 minute, 5minutes, 30 minutes, etc.


IP66 High Protection Level
The 3D people counter sensor is designed with a splash-proof casing to reduce the device failure rate and enhance hardware reliability.

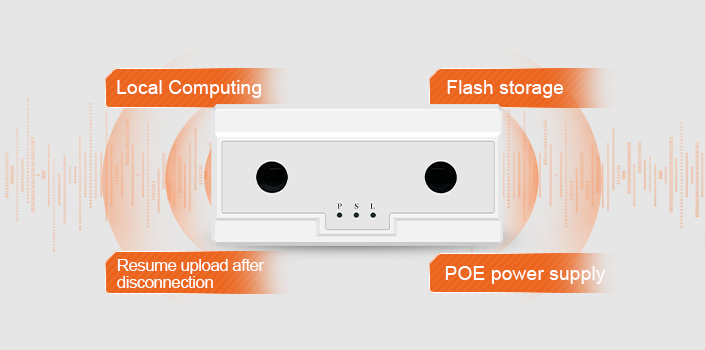

Network Smart Devices
Camera counting supports local computing with out the need for a local server, supports flash offline storage, supports resumable downloads when disconnected, supports Poe power supply,and supports wired/wireless connections

Reliability Test
3D people counting camera device has obtained relevant certificates, and its mean time
between failures (MTBF) is up to 50,000 hours, ensuring stable operation.

More Function Modes

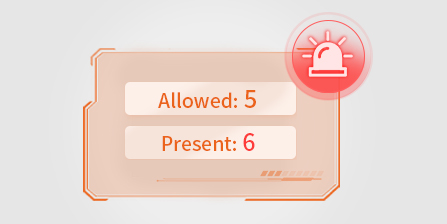

Capacity Limitation Mode
When the number of people exceeds the set value, the device sends a signal to the alarm and the alarm sounds.

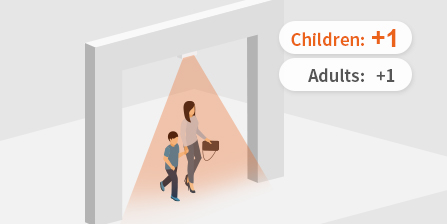

Child Mode
After setting the height of children, people who are shorter than this height passing by will be judged as children.

Control Mode
Equipment works with relay,control a variety of electrical appliances.

Data Display Mode
The device and the occupancy counter host are matched to visualize the data.

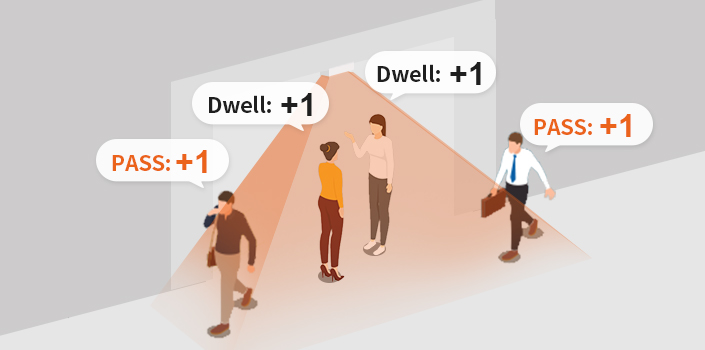

Channel Mode
Which can detect the number of people passing by the door and the number of people entering the store.

Standalone Mode
The local data of the device can be saved for 90 days and can be exported and used with out network.

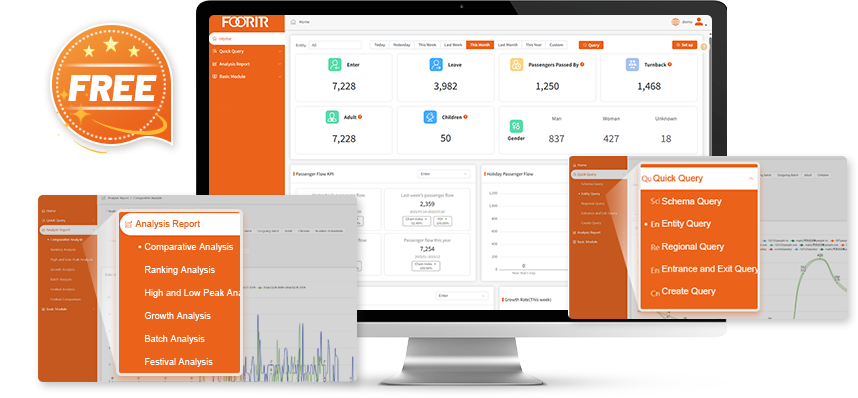

People Counting System
The People counting System( free of charge) cloud platform conducts visual management, providing users with real-time fast query
and multi-dimensional analysis reports to help make accurate operational decisions.

Analysis Report
The analysis report covers comparative analysis, ranking analysis, peak and valley analysis, growth analysis, batch analysis, holiday analysis, holiday comparison, etc.
Data Display
The query indicators includethe number of people entering.leaving, passed by, turning back, adult and children,incoming batch, outgoing batch,the number of families and individuals, etc
Quick Query
It includes pattern query, entity query, area query, entrance and exit query. Users can also create custom queries for 5 minutes, half an hour, hour, day, week, month, and year.
Client Configuration
On the same network segment, enter the debugging interface through the website we provide. you can link the corresponding device to view passenger flow data in real time, view device information, modify device settings, installation height, filter height, rotation angle, detection direction, network parameters, etc., and display the number of people entering/leaving/passing/staying/returning in real time. you can also export passenger flow data for a set time.

Application Scenarios
3D people counter sensor it is widely applicableto shopping malls,retail stores, buses,scenic spots, libraries, museums.restaurants,factories,
supermarkets, parks, buildings, smart toilets, exhibitionhalls, gyms, etc.

Easy Installation

Fix the expansion screw slots in the holes on the ceiling, and install the bracket firmly with expansion screws.

Insert the device into the bracket and align the holes on the side of the bracket with the screw holes on the device to secure it.

Supply power to the device and the grid.
