Industrial Cameras

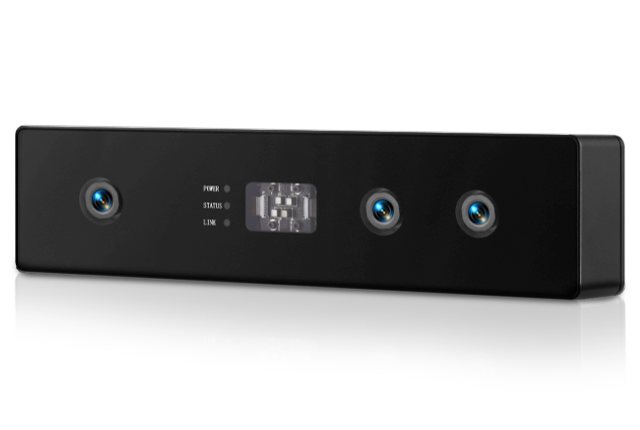

PEA020-800-Y180
This integrated 3D vision and artificial intelligence system can measure package volume in real time.
• High Precision
• Depth + RGB
• Highly Adaptable
• Wide Area Coverage
• IP65
• SDK
Volume Measurement
Using active stereo vision and RGB-D segmentation with volumetric algorithms, the system
delivers pixel-level detection and millimeter-level measurement accuracy
Package size measurement
The smallest measurable volume is 50mm x 50mm x 1mm, and the largest measurable volume is 1600mm x 1100mm x 800mm.

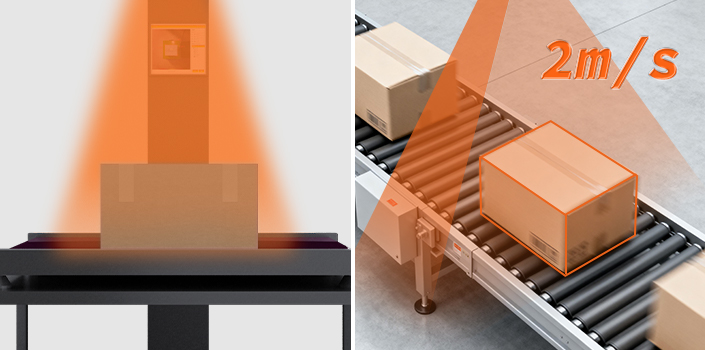

Dynamic/Static Measurement
It can measure packages of any shape or surface type in high-speed sorting environments (2 m/s), thereby improving transport efficiency.

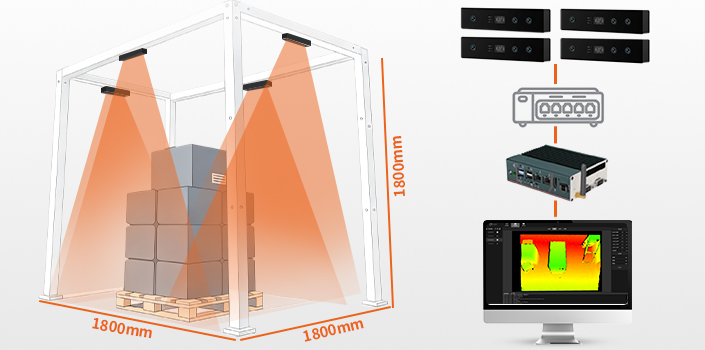

Bulk Measurement
Supports multi-camera 3D stitching with a built-in algorithm, covering up to 1800 × 1800 × 1800 mm with ±20 mm accuracy.
Irregular Volume Detection
It can accurately measure the volume of irregularly shaped packages, soft packaging, reflective parts, thin parts, and other special-shaped packages.

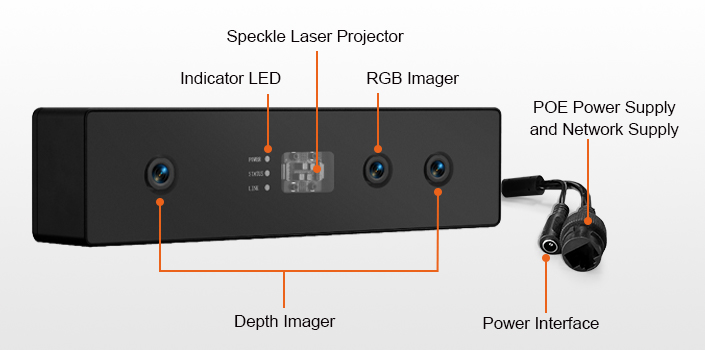

Appearance and Function
Integrated multi-module design with precise visual capture and built-in optical imaging. Supports industrial-grade data transmission and embedded vision hardware for high-accuracy volume measurement.

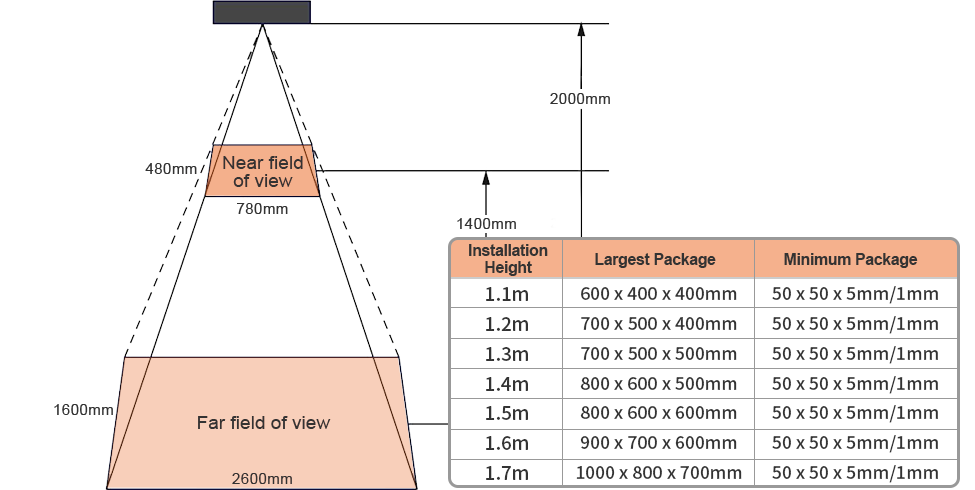

Installation Height
Supported installation heights range from 0.6 meters to 2.0 meters. There are no strict requirements for the installation angle; it can be installed vertically downwards (with a tolerance of ±5°).

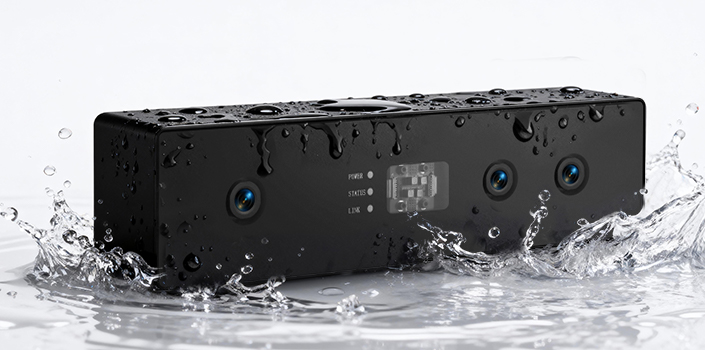

IP65 Protection Level
The splash-proof housing design reduces equipment failure rate and enhances hardware reliability.

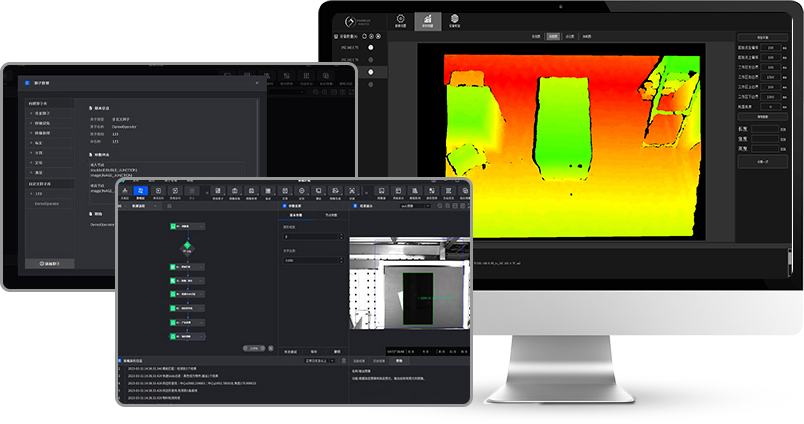

Backend Settings Terminal
An intuitive and easy-to-use application configuration environment, a complete infrastructure and toolset,
and deep hardware integration deliver a smooth and fast user experience.
Factory-calibrated, no additional software or programs required for connection.
The system is ready to run and automatically authenticates using performance analysis tools within 15 minutes.
Application Scenarios
Widely used in the logistics field for object measurement, dry goods package volume measurement, and irregularly shaped object detection.
