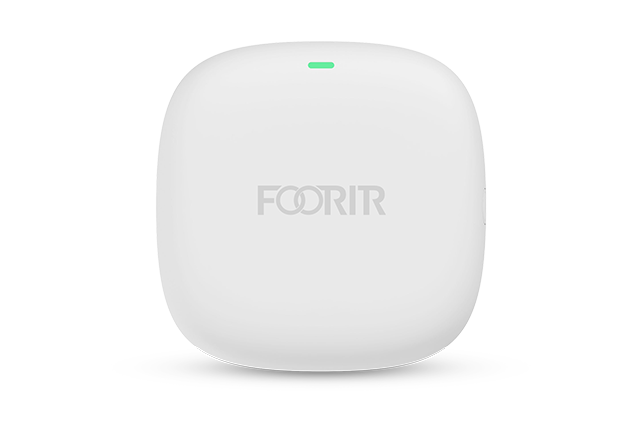

Radar People Counter
FP-RDN
Millimeter-wave radar technology is used to achieve high-precision detection and
real-time statistics of the number of people entering and leaving.
• 90% Accuracy
• Regional Population Statistics
• Cumulative Number of People
• Real-time People Detection
• Privacy protection
• Cross-line personnel statistics
• Report display and export
• Mobile phone configuration
Technical Principle
The core principle of millimeter wave radar technology is to accurately measure the target distance, speed and angle by emitting millimeter wave electromagnetic waves and analyzing the reflected signals. Its core mechanism includes frequency modulated continuous wave (FMCW) signal processing, Doppler effect and phase difference calculation, combined with high-precision hardware system to achieve environmental perception.
Accurate Counting
The device is easily disturbed by green potted plants, glass doors, metal and other debris in the environment. It is installed in the middle of the room, with few interfering objects and an accuracy rate of 90%.
Privacy Protection
The device does not collect facial recognition data, but only collects anonymous passenger flow data such as
passenger flow trajectories for passenger flow statistics, and does not involve any personal information.

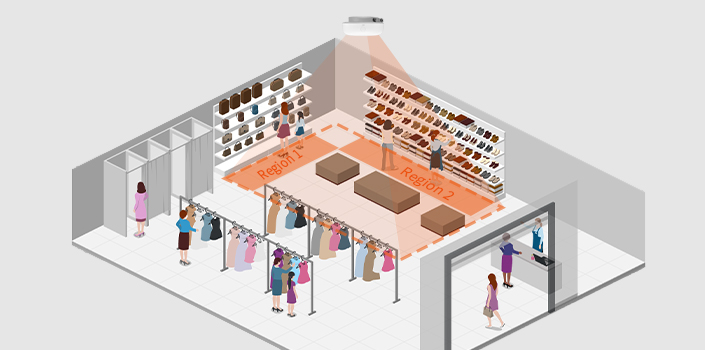

Regional Population Statistics
Supports custom drawing of detection areas (up to 6) Accurately count the number of people in each area.

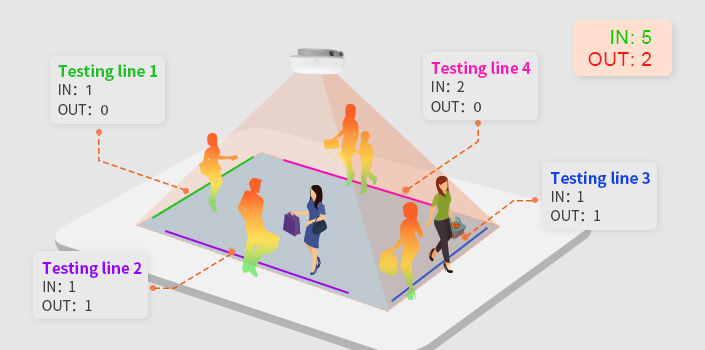

Cross-Line Personnel Statistics
Supports custom drawing of detection lines (up to 6) Realizes bidirectional counting of people crossing the line at multiple entrances and exits.

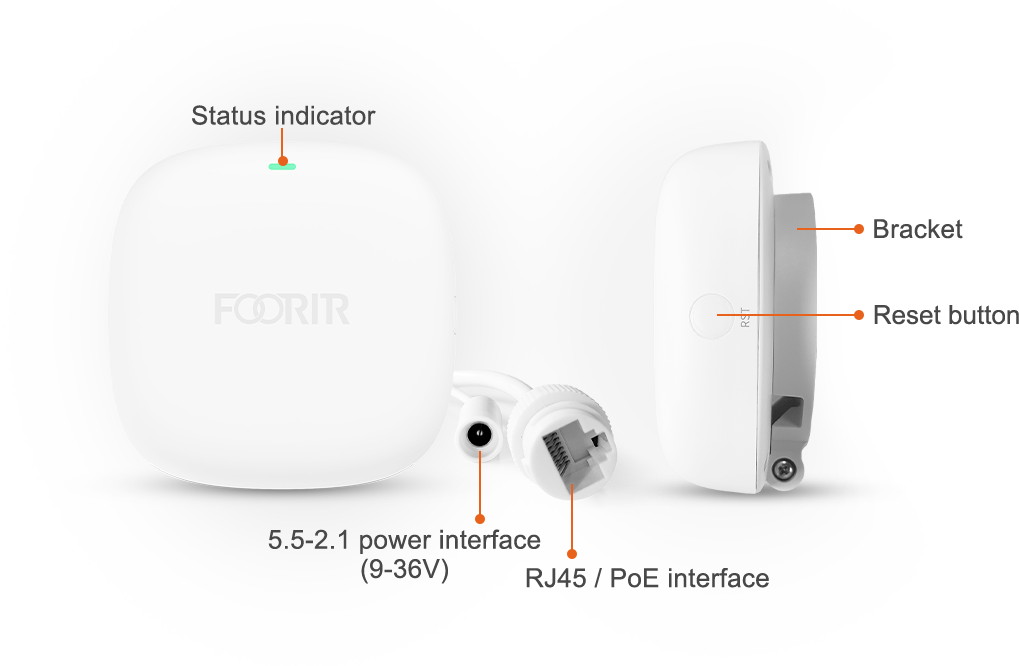

Appearance Function
‘Status indicator” system operating status
• Yellow light always on: Starting up (device powered on)
• Yellow light flashing: Upgrading process
• Green light always on: Always on for 3 seconds after successful network confguration
• Red light always on: Resetting (Press and hold the reset button for 10 seconds, the red light will be on for 3seconds before entering reset mode)

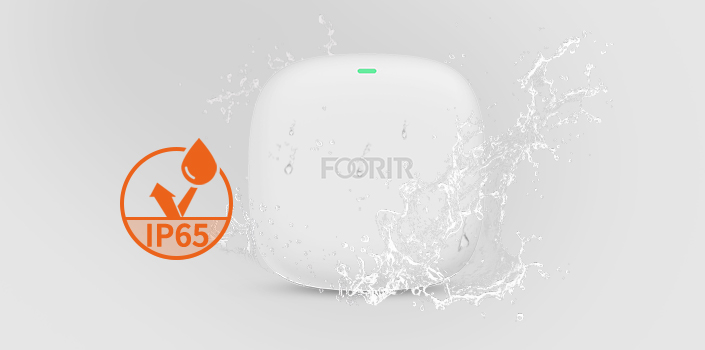

IP65 Protection Level
The radar people counter is designed with a splash-proof casing to reduce the device failure rate and enhance hardware reliability.

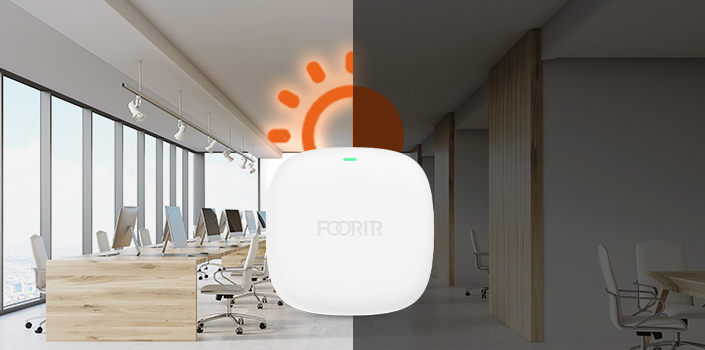

Strong Environmental Adaptability
Adapt to outdoor scenes with strong sunlight, scenes with decorative lights at the door, and scenes with dim light and darkness

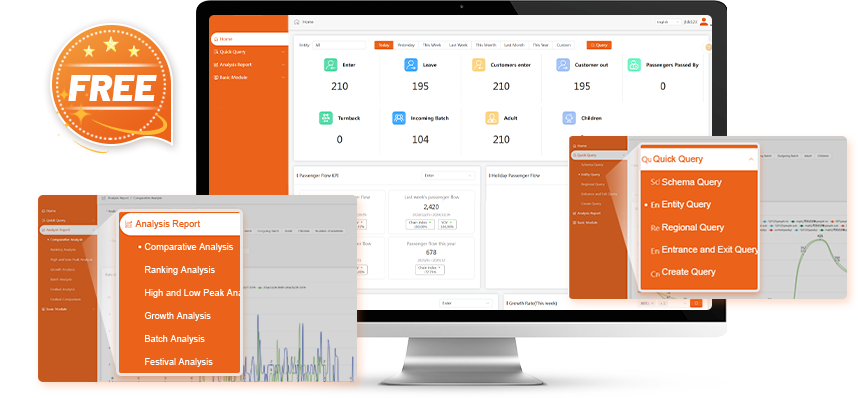

People Counting System
The People counting System( free of charge) cloud platform conducts visual management, providing users with real-time fast query
and multi-dimensional analysis reports to help make accurate operational decisions.
Analysis Report
The analysis report covers comparative analysis, ranking analysis, peak and valley analysis, growth analysis, batch analysis, holiday analysis, holiday comparison, etc.
Data Display
The query indicators includethe number of people entering.leaving, passed by, turning back, adult and children,incoming batch, outgoing batch,the number of families and individuals, etc
Quick Query
It includes pattern query, entity query, area query, entrance and exit query. Users can also create custom queries for 5 minutes, half an hour, hour, day, week, month, and year.

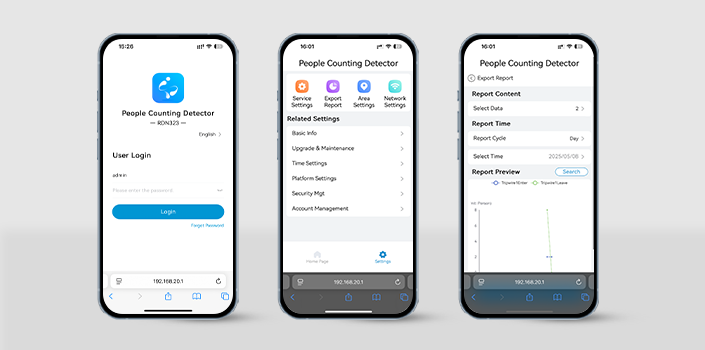

Device Background Settings
Connect your phone to the device hotspot, then visit 192.168.20.1 to enter the debugging interface. You can link the corresponding device to view passenger flow data in real time and export passenger flow data for a set time period. You can also view device information, modify device settings, etc.
Application Scenarios
Radar people counter it is widely applicableto shopping malls,retail stores, buses,scenic spots, libraries, museums.restaurants,factories,
supermarkets, parks, buildings, smart toilets, exhibitionhalls, gyms, etc.

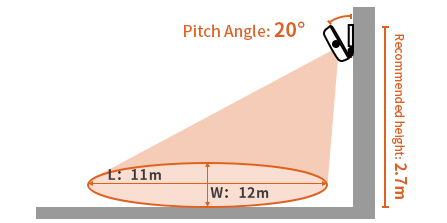

Installation

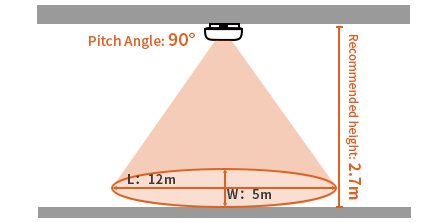

Top installation, installation height 2m~4.5m, 2.7m is recommended.

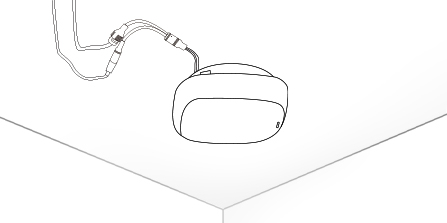

Wall-mounted installation, installation height 2m~4m, 2.7m is recommended.
DC12V, 1.0A or PoE48V0.5A
Related Products
HX-CCD22 Night Vision Bus Version

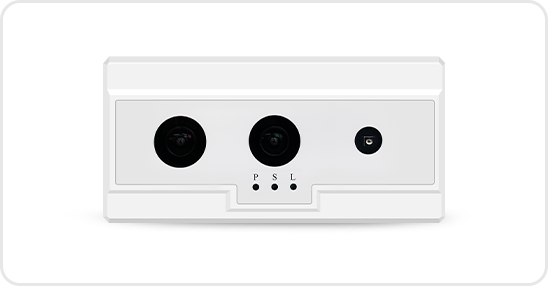

HX-CCD23 Ultra-Low Scene Version
