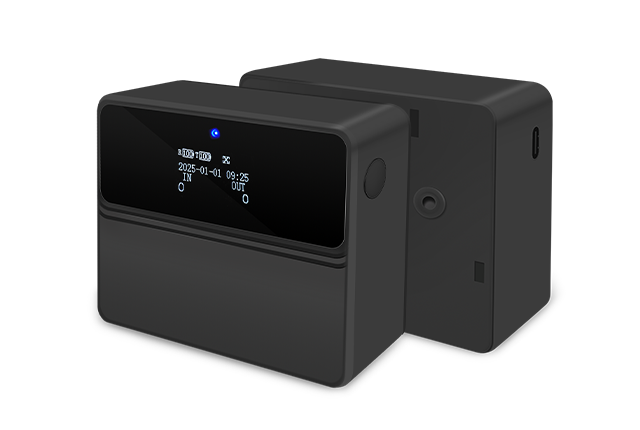

IR People Counter
FP110 Standalone Version
The system uses infrared blocking to detect and count pedestrians by identifying
their movement direction when the infrared beam is interrupted.
• Type-C & 18650 Battery
• Up to 97% Single-Person
• App Management & Query
• One-year ultra-long battery life
• lR Break Beam
• Easy Installation
• Strong Interference Resistance
• Two-way People Counting
Features
Specification
IR People Counter Related Introduction
Accurate Counting
It accurately counts individuals walking at various speeds, with up to 97% accuracy for single-person entries and exits under standard conditions.

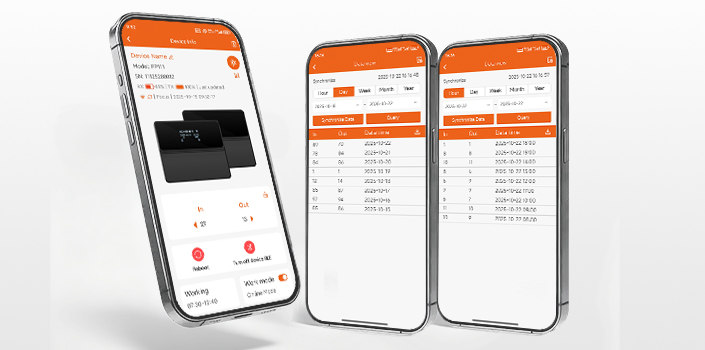

App Management & Query
After connecting via Bluetooth, the device can be upgraded to the latest version with one click in the app. The mobile app provides multi-dimensional data queries (hourly for 720 hours, daily for 730 days, weekly for 100 weeks, monthly for 120 months, and yearly for 10 years) and supports CSV export.

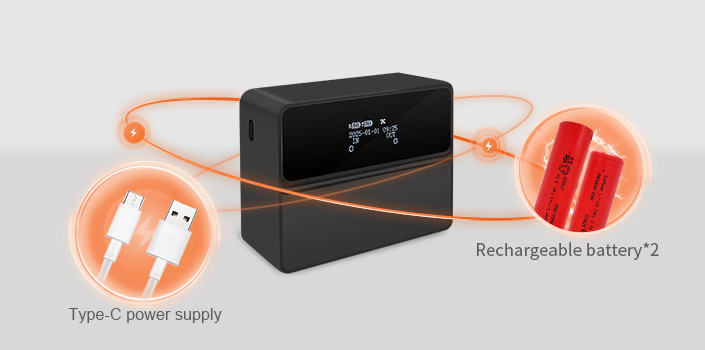

Flexible Power Supply Options
Supports Type-C power supply and battery charging, with four built-in 18650 batteries to suit various application scenarios.

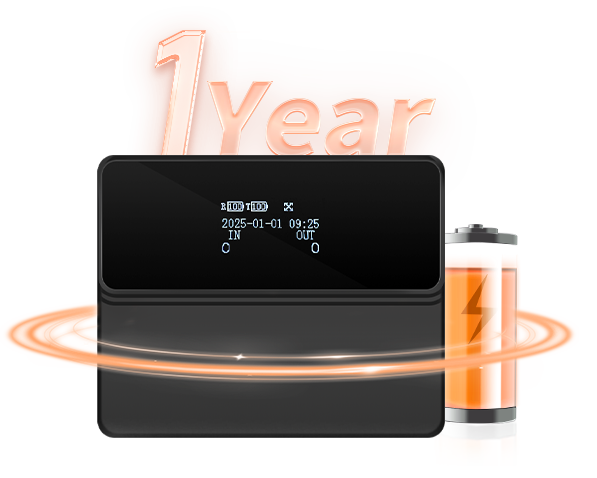

Ultra-long battery life
Under standard conditions, a single charge can last up to one year, ensuring reliable,
worry-free operation in various scenarios.

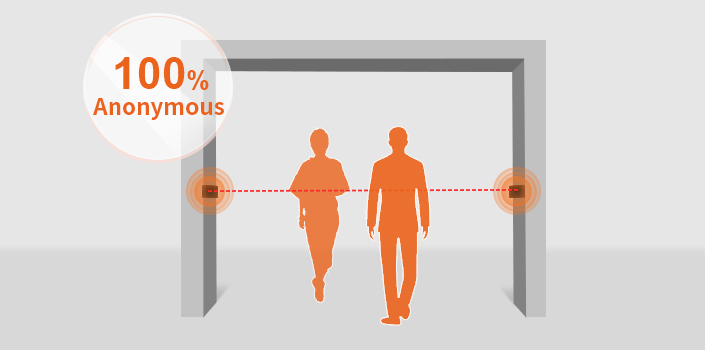

Anonymous Detection
The counter sensor uses ir blocking technology and does not collect any information.

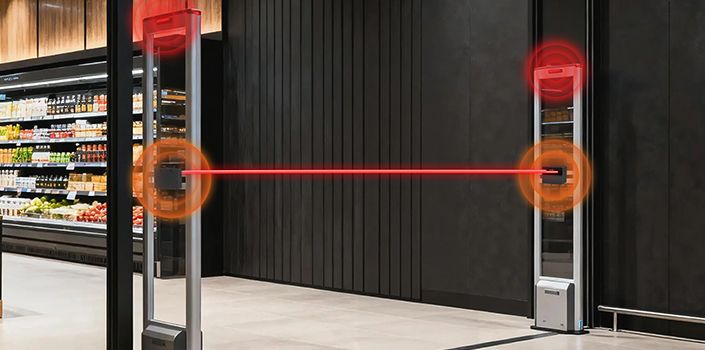

Strong Interference Capability
Supports normal operation in ESA alarms and other infrared bands.
Application Scenarios
Infrared people counters are widely used in shopping malls, retail stores, scenic spots, libraries, museums, restaurants, factories,
supermarkets, parks, office buildings, toilets and other places.
Easy Installation
No wiring required, easily paired with 3M super glue or screws for parallel alignment installation,
code pairing is successful start using immediately.

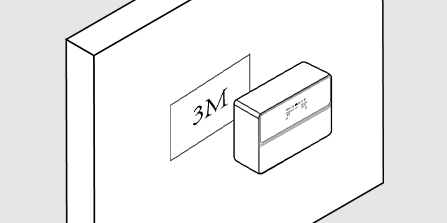

3M Adhesive

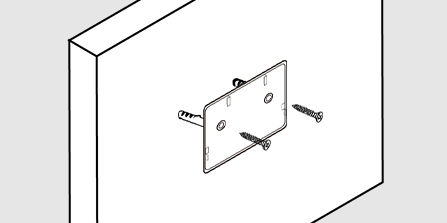

Screw Fixation

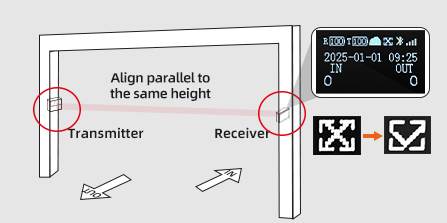

Code Pairing Successful
Related Products
FP112 WIFI Version
HX-CCD20
TOF People Counter
Specification
Dimension & Weight
Length
78 mm
Breadth
64 mm
Thickness
30 mm
Weight
Gross weight: 0.5KG (including accessories)
Net weight: 0.15KG
Actual size and weight may vary depending on configuration, manufacturing process, and measurement method
Installation & Detection Range
Installation
Fixed installation on the same horizontal line on both sides of the channel
Detection Range
<Close range> Indoors 1m-10m, Outdoors 1m-6m
<Medium range> Indoors 1m-12m, Outdoors 1m-8m
<Long range> Indoors 1m-15m, Outdoors 1m-9m
Accuracy & Height
Accuracy
Up to 97% Single-Person
Height
Suggestion 1.2m-1.4m
Data storage & power
Data storage
720 hours / 730 days / 120 months / 10 years
Power supply
3.7V lithium battery (5000mAh) / Type-C wired power supply
Power & Communication
Power
0.0004W~0.04W
Communication
Bluetooth 5.1
Accessories list
Accessories list
Charger (x1)
18650 (x4)
3M Adhesive (x4)
Quick Guide (x1)
