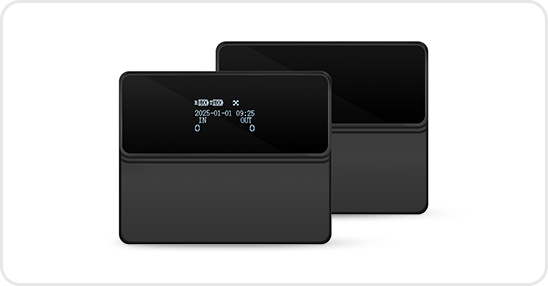

IR People Counter

HX-HE2 WIFI Version

By using IR blocking technology, when a human body passes by,

it will block the infrared rays from shooting back and forth,

thus realizing the counting of people.

Small Size
Easy Installation
Available in DarkEnvironment
Bi-Directional People Counting

lR Break Beam
Accurate Counting
WiFi DataTransmission
Long Battery Life

Features

Specification

IR People Counter Related Introduction

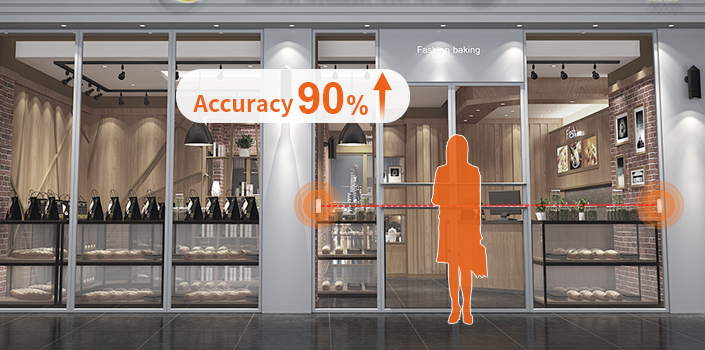

Accurate Counting

Infrared traffic counter can quickly count the number of people and auto matically identify the directionof pedestrians entering and exiting.under standard conditions, theaccuracy of a single person passing is over 90%.

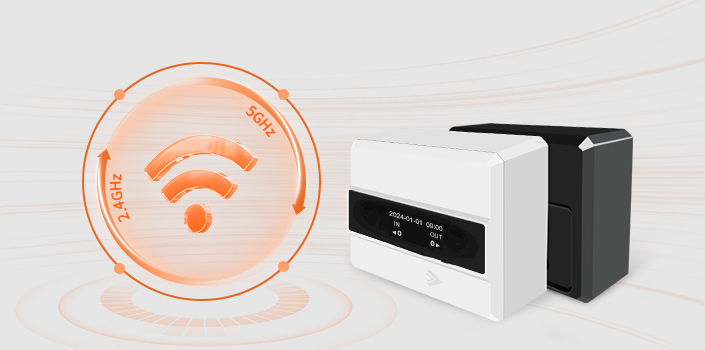

WiFi Data Transmission

Infrared traffic counter suitable for WiFi 2.4GHz/5GHZ frequency network environment,dual-band use, can flexibly respond to network requirementsin different scenarios, ensuring stable and efficient data transmission.

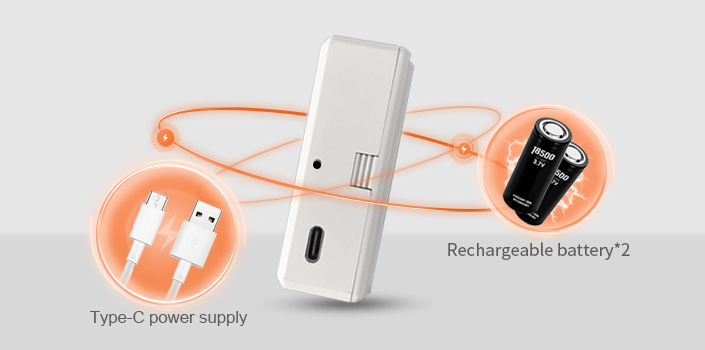

Flexible Power Supply Options

Infrared traffic counter it provides a 2000mAh large-capacity battery and Type-C interface power supply to meet the needs of different scenarios.

Docking Capability

Provide TCP protocol and SDK data package to easily connect device data with various servers, and support secondary development. support resume upload after disconnection and can cache up to 1720 piecesof offline data to ensure that no data is missed.

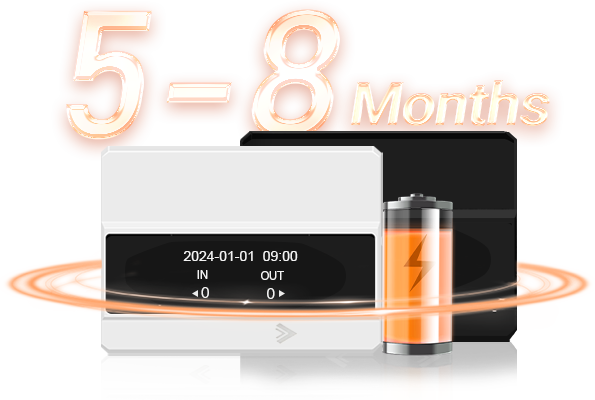

Long Battery Life

Under standard usage conditions, it can run continuously for up to 5-8 months on a single charge,

ensuring a worry-free experience in a variety of application scenarios.

Infrared Traffic Counter System

IR traffic counter data is uploaded to the cloud platform for visual management.

The cloud platform provides users with real-time quick query and multi-dimensional

analysis reports to help make accurate operational decisions.

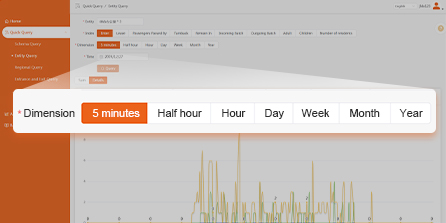

Data Display

The infrared traffic counter system platform can view data every 5 minutes, half an hour,hour, day, week, month, and year,and form multi-dimensional analysis reports and export Excel files to help make accurate operational decisions.

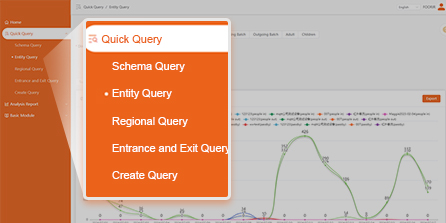

Quick Query

Includes schema query, entity query, regional query, entrance and exit query,and Create a custom query data for different architectures, such as a single device, a single store, multiple stores, areas, etc.

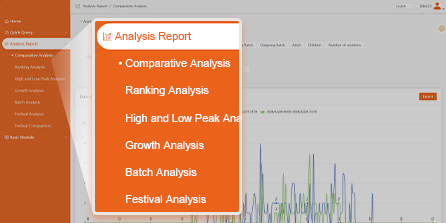

Analysis Report

Covers comparison analysis, ranking analysis, high and low peak analysis , growth analysis,batch analysis, festival analysis and festival comparison, presenting the analyzed passenger flow data in multiple dimensions.

Application Scenarios

Infrared traffic counters are widely used in shopping malls, retail stores, scenic spots, libraries, museums, restaurants, factories,

supermarkets, parks, office buildings, toilets and other places.

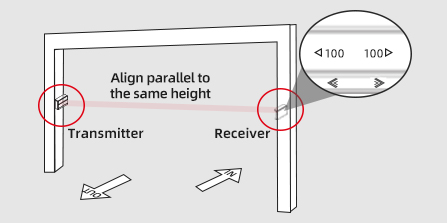

Easy Installation

No wiring required, easily paired with 3M super glue or screws for parallel alignment installation,

code pairing is successful start using immediately.

 3M Adhesive

 Screw Fixation

Code Pairing Successful

Related Products

HX-HE1 Standalone Version

HX-HE3 Web Version

HX-CCD20 3D Stereo Vision

TOF People Counter

Specification

Dimension & Weight

Length

65 mm

Breadth

50 mm

Thickness

25 mm

Weight

Gross weight: 0.37KG (including accessories)

Net weight: 0.076KG

Actual size and weight may vary depending on configuration, manufacturing process, and measurement method

Install & Detection Range

Install

Fixed installation on the same horizontal line on both sides of the
channel

Detection Range

<Close distance>1m-4m indoors, 1m-2m outdoors
<Medium distance > 1m-8m indoors, 1m-6m outdoors
< Long distance >1m-12m indoors, 1m-8m outdoors

Accuracy Rate & Height

Accuracy rate

≥90% under standard environment

Height

Suggestion 1.0m-1.2m

Communication & Power supply mode

Communication

WiFi (2.4GHz,5GHz)

Power supply mode

Support 18500 battery power supply(2.8V-4.2V)

Support Type-C interface to power the whole device (5V0.5A-2A)

Data Upload
Method & Offline Cache

Data Upload Method

TCP

Offline Cache

1720 items

Local Storage

Local Storage

Nearly 730 days, 36 months, 10 years

Transmitter
Battery Life & ReceiverBattery
Life

Transmitter Battery Life

<Close distance> Single tube for 8 months, Double tube for 5 months
<Medium distance >Single tube for 5 months, Double tube for 3 months
<Long distance > Single tube for 2 months, Double tube for 1 month
*Factory default: < Medium distance > Single tube

Receiver Battery Life

Business hours: 12 hours /1,200 people in and out /5 minutes for uploading /1 minutes for recording / 2 months for battery life
Business hours: 12 hours /1,200 people in and out /upload interval: 10minutes/recording cycle: 5 minutes /5 months for battery life
Business hours: 12 hours/1,200 people in and out / 30 minutes for uploading /5 minutes for recording /6 months for battery life
Business hours: 12 hours /1,200 people in and out / 30 minutes for uploading /30 minutes for recording / 9 months for battery life
*It is recommended to set the business hours to 8 hours, the upload interval to 10 minutes, and the recording period to 5 minutes.

Accessories list

Accessories list

Charger (x1)

Battery (x2)

Stand (x2)

3M Glue (x4)

Certificate (x1)

Instructions (x1)

Warranty Card (x1)
