IR People Counter

HX-HE1 Standalone Version

By using IR blocking technology, when a human body passes by.

It will block the infrared rays from shooting back and forth.

Thus realizing the counting of people.

Small Size
Easy Installation
Available in DarkEnvironment
Bi-Directional People Counting

lR Break Beam
Accurate Counting
Local Data Query
Long Battery Life

Features

Specification

IR People Counter Related Introduction

Accurate Counting

Infrared people counter can quickly count the number of people and auto matically identify the direction of pedestrians entering and exiting.Under standard conditions, the accuracy of a single person passing is over 90%.

Local Data Query

Infrared people counter integrates counting and query functions.The device automatic performs two-way counting. After the data is generated in real time, users can query and clear data directly from the device. Historical data for thepast 730 days, 36 months, and up to 10 years can be queried.

Flexible Power Supply Options

Infrared people counter it provides a 2000mAh large-capacity battery and Type-C interface power supply to meet the needs of different scenarios.

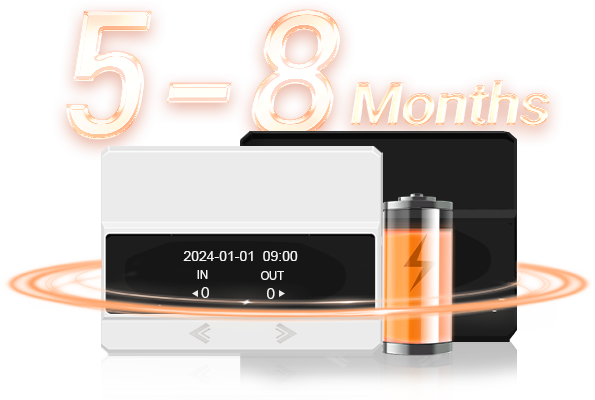

Long Battery Life

Under standard usage conditions, it can run continuously for up to 5-8 months on a single charge,

ensuring a worry-free experience in a variety of application scenarios.

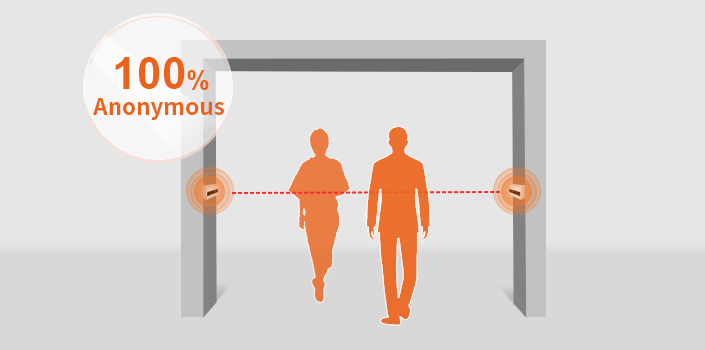

Anonymous Detection

The infrared counter sensor uses ir blocking technology and does not collect any information.

Strong Environmental Adaptability

The infrared counter sensor has excellent performance and can still be used normally in a dark environment.

Application Scenarios

Infrared people counters are widely used in shopping malls, retail stores, scenic spots, libraries, museums, restaurants, factories,

supermarkets, parks, office buildings, toilets and other places.

Easy Installation

No wiring required, easily paired with 3M super glue or screws for parallel alignment installation,

code pairing is successful start using immediately.

 3M Adhesive

 Screw Fixation

Code Pairing Successful

Related Products

IR People Counter(HX-HE2)

IR People Counter(HX-HE3)

3D People Counter

TOF People Counter

Specification

Dimension & Weight

Length

65 mm

Breadth

50 mm

Thickness

25 mm

Weight

Gross weight: 0.37KG (including accessories)

Net weight: 0.076KG

Actual size and weight may vary depending on configuration, manufacturing process, and measurement method

Installation & Detection Range

Installation

Fixed installation on the same horizontal line on both sides of the channel

Detection Range

< Close distance > 1m-4m indoors, 1m-2m outdoors

<Medium distance >1m-8m indoors, 1m-6m outdoors

<Long distance>1m-12m indoors, 1m-8m outdoors

Accuracy & Height

Accuracy

 ≥90%under standard environment

Height

Suggestion 1.0m-1.2m

Local Storage & Power Supply

 Local Storage

Nearly 730days,36months,10years

Power Supply

Support 18500 battery power supply (2.8V-4.2V)

Support Type-C interface to power the whole device (5V0.5A-2A)

Transmitter Battery Life & Receiver Battery Life

Transmitter Battery Life

<Close distance> Single tube for 8 months, Double tube for 5 months

<Medium distance >Single tube for 5 months, Double tube for 3months

<Long distance > Single tube for 2 months, Double tube for 1 month

Factory default: < Medium distance > Single tube

Receiver Battery Life

Business hours 8 hours /1,200 people in and out / battery life 8months

Business hours 10 hours /1,200 people in and out / battery life 7monthsBusiness hours 12 hours /1,200 people in and out / battery life 6months

Business hours 24 hours /1,200 people in and out / battery life 4months

It is recommended to set the business hours to 8 hours

Accessories list

Accessories list

Charger (x1)

Battery (x2)

Stand (x2)

3M Glue (x4)

Certificate (x1)

Instructions (x1)

Warranty Card (x1)
