IR People Counter

HX-HE3 Web Version

By using IR blocking technology, when a human body passes by.

It will block the infrared rays from shooting back and forth.

Thus realizing the counting of people.

Accurate Counting
Easy Installation
Available in DarkEnvironment
Bi-Directional People Counting

lR Break Beam
Local Data Query
Long Battery Life
Mobile Web Page Data Query

Features

Specification

IR People Counter Related Introduction

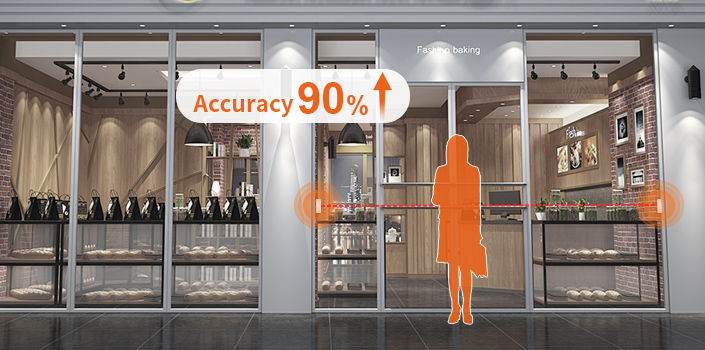

Accurate Counting

Infrared beam counter can quickly count the number of people and auto matically identify the directionof pedestrians entering and exiting. under standard conditions, theaccuracy of a single personpassing is over 90%.

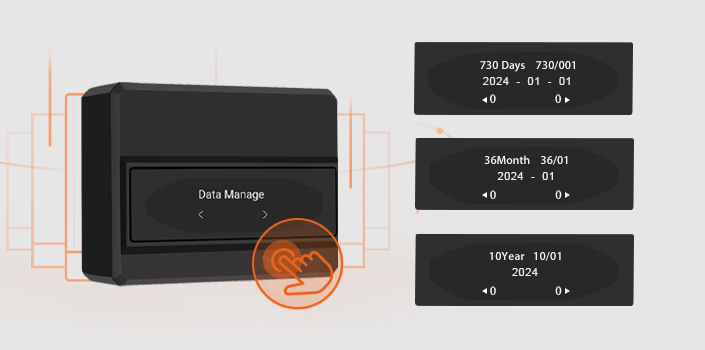

Local Data Query

Infrared beam counter it supports querying device screen data of the past 730days, 36 months, 10 years and canclear current – day and all data.

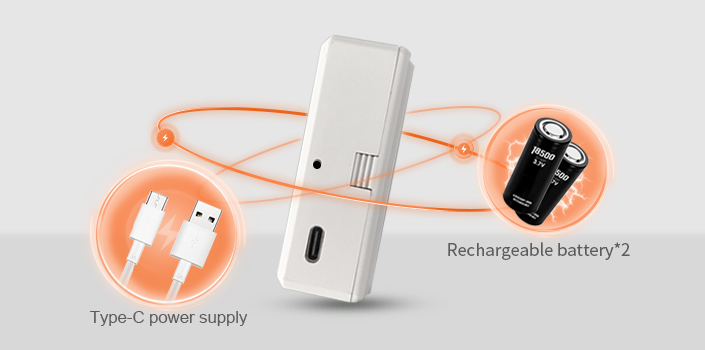

Flexible Power Supply Options

Infrared beam counter it provides a 2000mAh large-capacity battery and Type-C interface power supply to meet the needs of different scenarios.

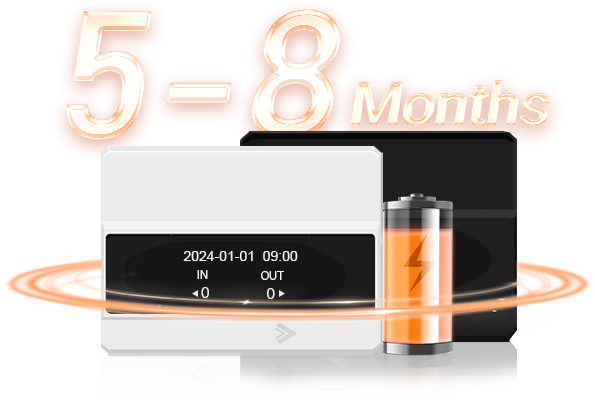

Long Battery Life

Under standard usage conditions, it can run continuously for up to 5-8 months on a single charge,

ensuring a worry-free experience in a variety of application scenarios.

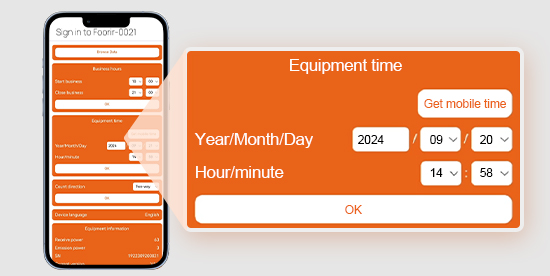

AP Configuration and Data Query

Parameter Settings

After the mobile phone isconnected to the device a pall parameter information can be directly set and viewedthrough the mobile phone web page, including business hours,equipment time, countdirection, etc. The operation issimple and smooth.

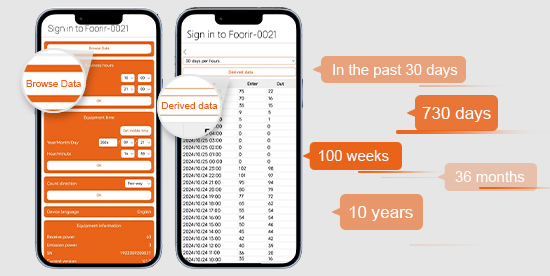

Browse Data

You can browse data on the mobile web page to query historical data for the past 30days per hour, 730 days,100weeks, 36 months, and 10years, and you can easilyexport data files to your mobile phone for easy access.

Application Scenarios

Infrared beam counters are widely used in shopping malls, retail stores, scenic spots, libraries, museums, restaurants, factories,

supermarkets, parks, office buildings, toilets and other places.

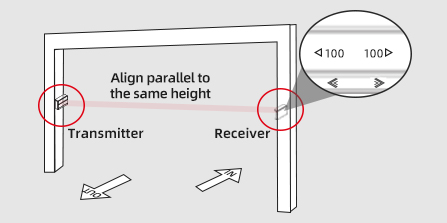

Easy Installation

No wiring required, easily paired with 3M super glue or screws for parallel alignment installation,

code pairing is successful start using immediately.

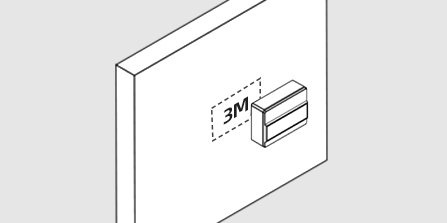

 3M Adhesive

 Screw Fixation

Code Pairing Successful

Related Products

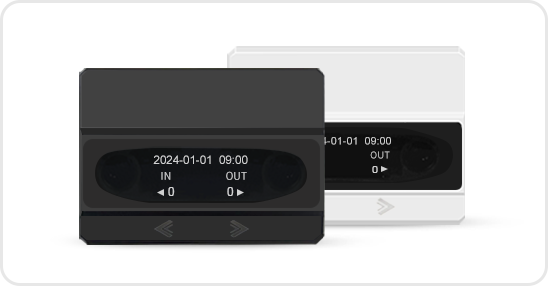

HX-HE1 Standalone Version

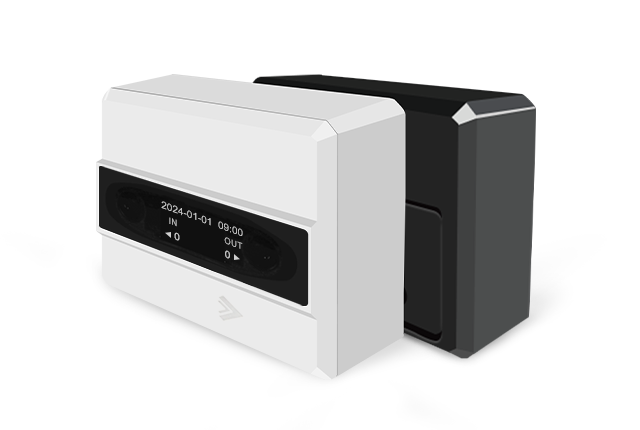

HX-HE2 WIFI Version

HX-CCD20 3D Stereo Vision

TOF People Counter

Specification

Dimension & Weight

Length

65 mm

Breadth

50 mm

Thickness

25 mm

Weight

Gross weight: 0.37KG (including accessories)

Net weight: 0.076KG

Actual size and weight may vary depending on configuration, manufacturing process, and measurement method

Install & Detection Range

Install

Fixed installation on the same horizontal line on both sides of the channel

Detection Range

<Close distance>1m-4m indoors, 1m-2m outdoors
<Medium distance >1m-8m indoors, 1m-6m outdoors
<Long distance >1m-12m indoors, 1m-8m outdoors

Accuracy rate & Height

Accuracy rate

≥90% under standard environment

Height

Suggestion 1.0m-1.2m

Local Storage & Power supply

Local Storage

The last 730 days, 36 months, 10 years , and the web page shows an additional 30 days per hour, 100 weeks

Power supply

Support 18500 battery power supply (2.8V-4.2V)
Support Type-C interface to power the whole device (5V0.5A-2A)

Transmitter
Battery Life & Receiver Battery Life

Transmitter Battery Life

<Close distance> Single tube for 8 months, Double tube for 5 months
<Medium distance >Single tube for 5 months, Double tube for 3 months
< Long distance > Single tube for 2 months, Double tube for 1 month
*Factory default : <Medium distance > Single tube

Receiver Battery Life

Business hours 8 hours /1,200 people in and out / battery life 8 months
Business hours 10 hours/1,200 people in and out / battery life 7months
Business hours 12 hours /1,200 people in and out / battery life 6months
Business hours 24 hours /1,200 people in and out / battery life 4months
*It is recommended to set the business hours to 8 hours

Accessories list

Accessories list

Charger (x1)

Battery (x2)

Stand (x2)

3M Glue (x4)

Certificate (x1)

Instructions (x1)

Warranty Card (x1)
