2D People Counter

Bidirectional people counter

WlFl/ wired transmission

Support secondary development

Features

High accuracy statistics

Wide coverage

Wifi/wired transmission

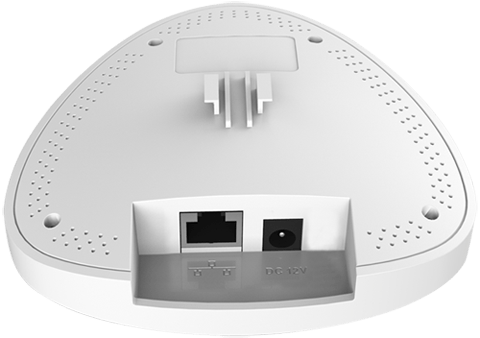

Interface Introduction

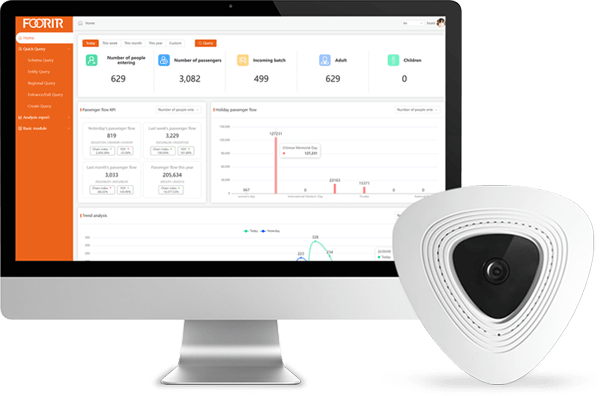

View data remotely

It can realize the data query, data analysis, visual curve and graphical and intuitive passenger flow data of parks, companies, shops, shopping malls, stations, hotels and other areas. From data analysis, passenger flow KPI, holiday passenger flow, to trend analysis, it can be customized according to users’ actual needs on the cloud platform. Remote monitoring of device status for efficient management.

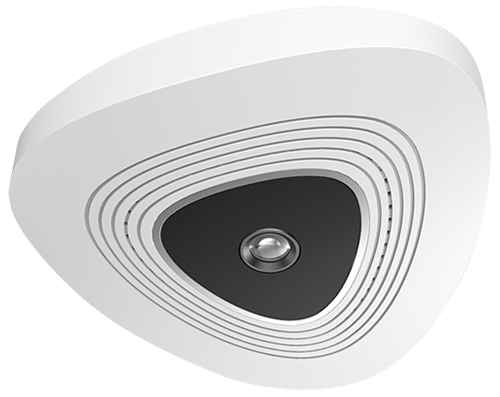

2D People Counter (HX-CCD10)

Product Details

Dimension and Weight

Length

111mm

Breadth

111mm

Thickness

33mm

Weight

Gross weight: 0.37KG (including accessories)

Net weight: 0.076KG

Actual size and weight may vary depending on configuration, manufacturing process, and measurement method

Height and Coverage area

Height

2.5-6.0m

Coverage area

2.5-3.2m

Accuracy rate and Height

Accuracy rate

Under standard environment: 80%-85%

Height

DC12V/1A

Environment and Battery Life

Environment

 Operating temperature: 0~40℃

 Illuminance: 300LX (±10%)

 Ground color: White

Battery Life

Wall-mounted

Ceiling-mounted

Accessories list

Accessories

Power adapter(x1)

Screw pack(x1)

Top-mounted bracket(x1)

Wall mount bracket(x1)

Case Study

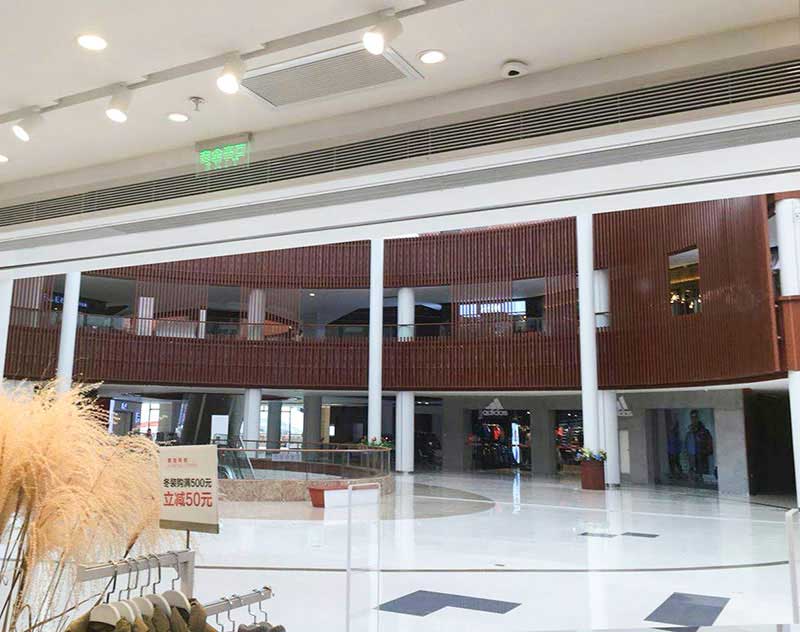

The chain store case is in China

Use requirement

Real-time statistics of passenger flow

Analyze the influence of holidays, activities and weather on passenger flow

The influence of brand stores on passenger flow

Use product

1.2D People Counter
