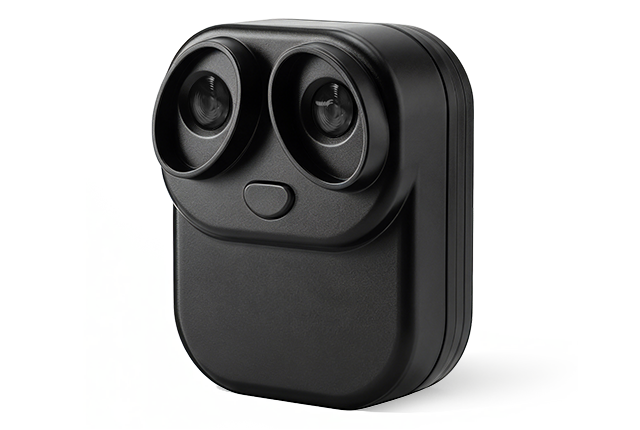

PIR People Counter
FP102 4G Cat.1 Intelligent People‑Counting Device, designed for off‑grid and
hard‑to‑wire scenarios,supporting remote data upload and management.
• Multi‑device Management
• PIR Infrared Sensing
• Wire‑free Single‑side Install
• 1-year Battery Life
• 10k Offline Cached Records
• Remote Query & Control
• Works Without Network
• Open API Integration
Features
Specification

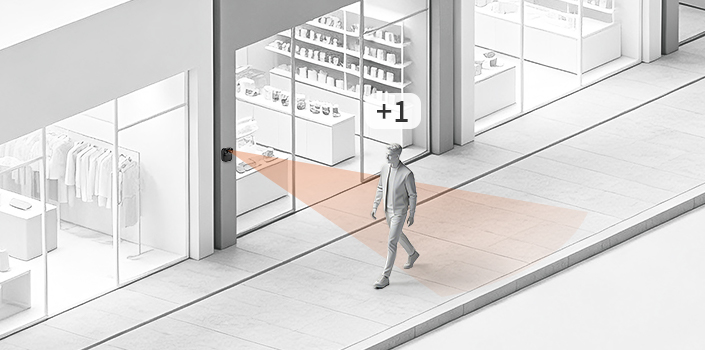

Accurate Counting
Accurately counts pedestrians walking normally or passing quickly. Up to 90‑95% accuracy for single‑person entry/exit under standard conditions.
Count Total Channel Visitors
Understand regional foot traffic, compare volumes across locations. Leverage data to evaluate site value and support commercial‑site‑selection decisions.

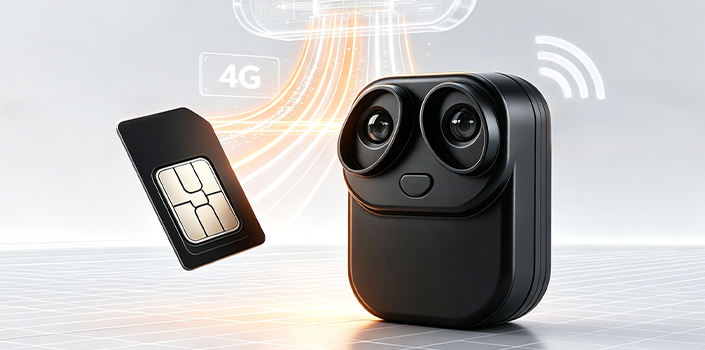

Built‑in 4G SIM
No on‑site network needed. Connects directly to cellular network for instant internet & data upload. 1‑year free cellular service included.

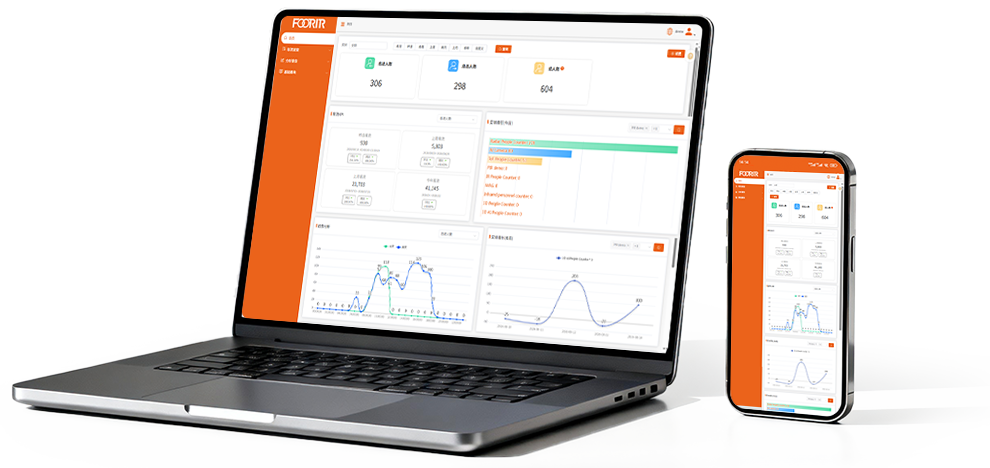

Remote Query & Management
Data can be accessed remotely anytime without on-site visits. It supports multi-dimensional statistics via a free cloud platform (5-minute, 30-minute, hourly, daily, weekly, monthly, and yearly views), with report generation and Excel export. Key parameters sync automatically to the cloud, and devices can be remotely configured for efficient management.

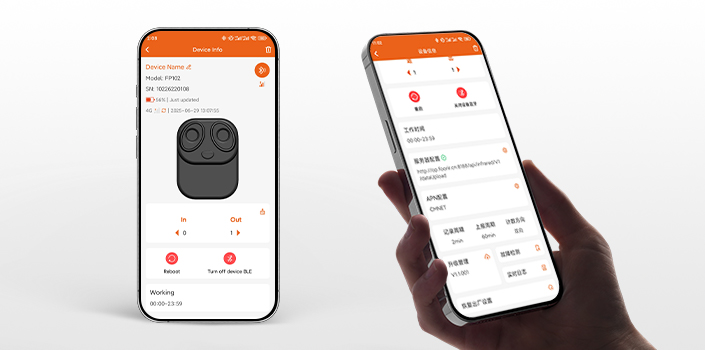

Bluetooth App Management
Connect via Bluetooth for parameter setup, one‑click firmware upgrade and self‑test.

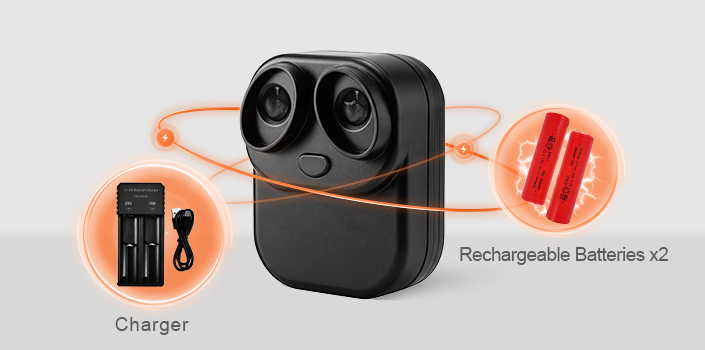

Power Options
Comes with 2 rechargeable 18650 batteries + 1 charger, ideal for wire‑free installation.
Ultra-long battery life
Under standard conditions, a single charge can last up to one year, ensuring reliable,
worry-free operation in various scenarios.

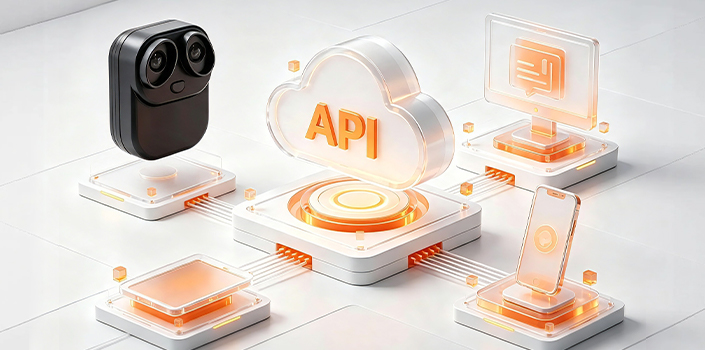

Open Integration
Third‑party protocol available, push data to any server.
Anonymous Detection
Uses PIR sensing, no personal data collected.

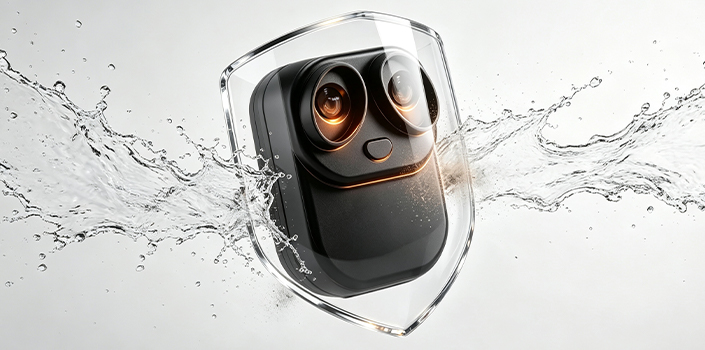

IP66 Waterproof
Splash‑proof housing for lower failure rate & better hardware reliability.
PIR People Counter System
PIR people counter data is uploaded to the cloud platform for visual management.
The cloud platform provides users with real-time quick query and multi-dimensional
analysis reports to help make accurate operational decisions.
Data Display
The counter platform provides data views every 5 minutes, 30 minutes, hour, day, week, month, and year, enabling multi-dimensional analysis and Excel export to support accurate operational decisions.
Quick Query
Includes schema query, entity query, regional query, entrance and exit query,and Create a custom query data for different architectures, such as a single device, a single store, multiple stores, areas, etc.
Analysis Report
It covers multiple dimensions, including comparative analysis, ranking analysis, peak and trough analysis, growth analysis, batch analysis, holiday analysis, and holiday comparison.
Application Scenarios
Infrared traffic counters are widely used in shopping malls, retail stores, scenic spots, libraries, museums, restaurants, factories,
supermarkets, parks, office buildings, toilets and other places.

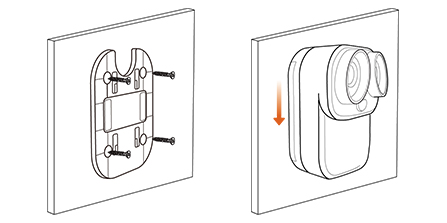

Easy Installation
Screw‑mount, wire‑free installation. Quick network setup for instant use.
Works on walls, door frames, passages & outdoors.

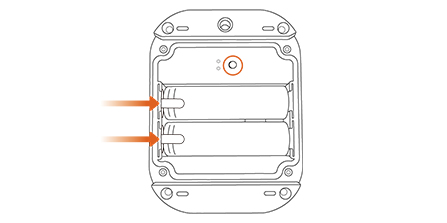

Remove battery insulation tab
Screw mounting
Single‑side installation
Related Products
FP110 Standalone Version
HX-CCD20
TOF People Counter
Specification
Dimension & Weight
Length
80 mm
Breadth
Thickness
Weight
Gross weight: 0.48KG (including accessories)
Net weight: 0.28KG
Actual size and weight may vary depending on configuration, manufacturing process, and measurement method

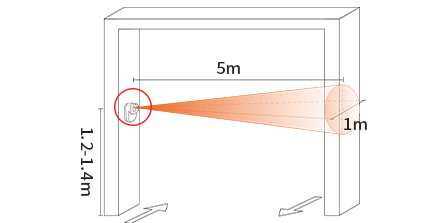

Install & Detection Range
Install
Mount on either side of the path, sensor perpendicular to pedestrian direction
Detection Range
5M
Accuracy Rate & Height
Accuracy rate
Up to 95% Single-Person
Height
Suggestion 1.2m-1.4m
Communication & Power Supply
Communication
All-Network Compatible Cat.1; Bluetooth 5.0
Power supply
Two 3.7V lithium‑ion batteries, 3500 mAh each
Data Upload & Offline Caching
Data Upload
HTTP & JSON
Offline Caching
Stores 10,000 upload records, resumes data transfer after network outage.
Power
Power
0.0002W~3.7W
Accessories list
Accessories list
Charger (×1)
Screw kit (×1)
Hex wrench (×1)
Quick‑start guide (×1)
Includes 2×18650 batteries
