PIR People Counter
FP101 uses Passive Infrared (PIR) technology. It counts people by detecting changes
in human‑body infrared radiation.
• Bi‑directional People Counting
• PIR Sensing Technology
• Wire‑free Single‑side Install
• 1-year Battery Life
• App Setup & Data Viewing
• Bluetooth 5.0
• IP66 Water‑Resistant
• 5m Detection Range
Features
Specification
Accurate Counting
Accurately counts pedestrians walking normally or passing quickly. Up to 90‑95% accuracy for single‑person entry/exit under standard conditions.
Count Total Channel Visitors
Understand regional foot traffic, compare volumes across locations. Leverage data to evaluate site value and support commercial‑site‑selection decisions.

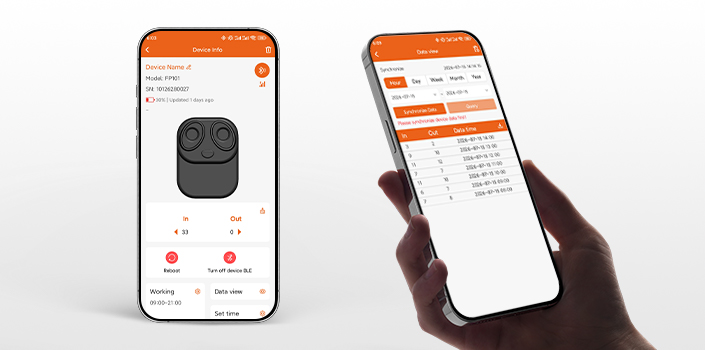

Bluetooth App Management
Connect via Bluetooth for parameter setup, one‑click firmware upgrade and self‑test.
Power Options
Comes with 2 rechargeable 18650 batteries + 1 charger, ideal for wire‑free installation.
Ultra-long battery life
Under standard conditions, a single charge can last up to one year, ensuring reliable,
worry-free operation in various scenarios.
Anonymous Detection
Uses PIR sensing, no personal data collected.
IP66 Waterproof
Splash‑proof housing for lower failure rate & better hardware reliability.
Application Scenarios
Infrared traffic counters are widely used in shopping malls, retail stores, scenic spots, libraries, museums, restaurants, factories,
supermarkets, parks, office buildings, toilets and other places.
Easy Installation
Screw‑mount, wire‑free installation. Quick network setup for instant use.
Works on walls, door frames, passages & outdoors.
Remove battery insulation tab
Screw mounting
Single‑side installation
Related Products
FP110 Standalone Version
HX-CCD20
TOF People Counter
Specification
Dimension & Weight
Length
80 mm
Breadth
Thickness
Weight
Gross weight: 0.48KG (including accessories)
Net weight: 0.28KG
Actual size and weight may vary depending on configuration, manufacturing process, and measurement method
Install & Detection Range
Install
Mount on either side of the path, sensor perpendicular to pedestrian direction
Detection Range
5M
Accuracy Rate & Height
Accuracy rate
Up to 95% Single-Person
Height
Suggestion 1.2m-1.4m
Communication & Power Supply
Communication
Bluetooth 5.0
Power supply
Two 3.7V lithium‑ion batteries, 3500 mAh each
Power
Power
0.0002W~3.7W
Accessories list
Accessories list
Charger (×1)
Screw kit (×1)
Hex wrench (×1)
Quick‑start guide (×1)
Includes 2×18650 batteries
